1. Ultra small size SMD 3225 packaged differential crystal oscillator
2. LVPECL output, frequency range 10MHz~250MHz
3. Working voltage of 2.5V/3.3V, low power consumption, high precision
4. Supports 3-state functionality
5. Low phase jitter, mainly used in fiber optic communication, storage devices, servers, smart grids, 10 Gigabit Ethernet, base stations and other product equipment
6. Passed RoHS green environmental certification and meets international green environmental requirements
| Item /Type | NDOLP32 | Surface mount 3225 differential crystal oscillator LVPECL |

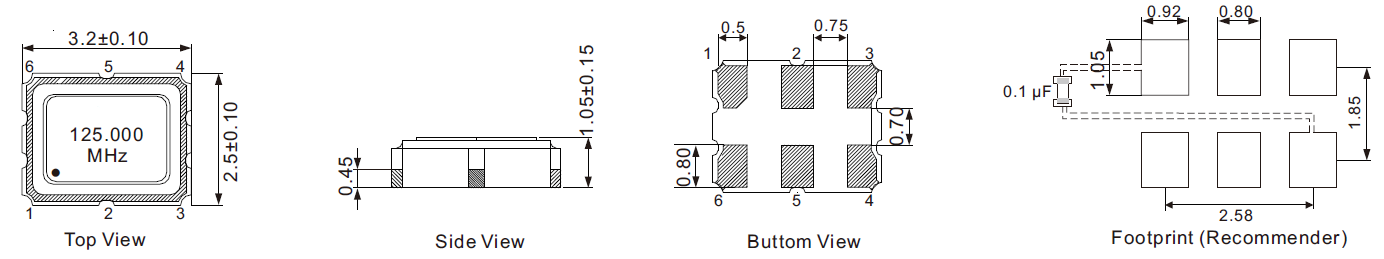

| Dimensions | 3.2×2.5×1.00 |
| Output | LV-PECL |
| Output load |
50Ω (Terminated to Vcc-2.0V) |
| Output frequency range | 10MHz~250MHz |
| Supply voltage | 2.5V / 3.3V |
| Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating temperature |
-20~ 70oC, -40~ 85oC |
| Current consumption |
100mA max. |
| Disable current |
35mA max. |
| Symmetry |
45%~55% |
| Output voltage Voh (min.) / Vol (max.) |
Vcc-1.1 V min. / Vcc-1.5 V max. |
| Input voltage Vih (min.) / Vol (max.) |
70% Vcc min. / 30% Vcc max. |
| Rise / Fall time |
1ns max. |
| Start-up time |
10ms max. |
| Storage temperature |
-55~ 125oC |
| Phase jitter (12KHz~20MHz) |
1 pSec Max. |
