1. Wide frequency output range 32.768kHz x (30kHz~350kHz)
2. High reliability and high frequency stability
3. Impact resistance and low power consumption
4. Small size, frog foot SMT cylindrical tuning fork crystal oscillator
5. Ribbon packaging, suitable for automatic installation and reflow soldering
6. Green and environmentally friendly products, certified by RoHS and Pb Free
7. The 206B series 32.768kHz SMT crystal oscillator is mainly used in electronic products such as devices with clock function, computers and computer peripherals, advertising machines, security, automotive electronics, embedded systems, industrial equipment, home theaters, network communication, wireless devices, smart homes, the Internet of Things, small appliances, and public broadcasting systems
| model | 206D (206B SMT 32.736kHz crystal oscillator) |
| Nominal frequency | 32.768kHz (30kHz~350kHz) |
| Frequency accuracy (25 ℃) | ± 20ppm, or customized |
| working temperature | -40 ℃~85 ℃ |
| direct capacitance | 2.0pF typical |
| Dynamic capacitance | 6.4fF typical |
| insulation resistance | 500M Ω minimum |
| Drive power | one μ W maximum |
| Load capacitance | 12.5pF, or customized |
| Conversion temperature | 25 ℃± 5 ℃ |
| Parabolic Coefficients | (-0.034 ± 0.006) * 10-6/℃2 |
| Aging rate (25 ℃) |
± 3ppm in the first year |
| Storage temperature | -55 ℃~125 ℃ |
| Resonant resistor | 50K Ω maximum |

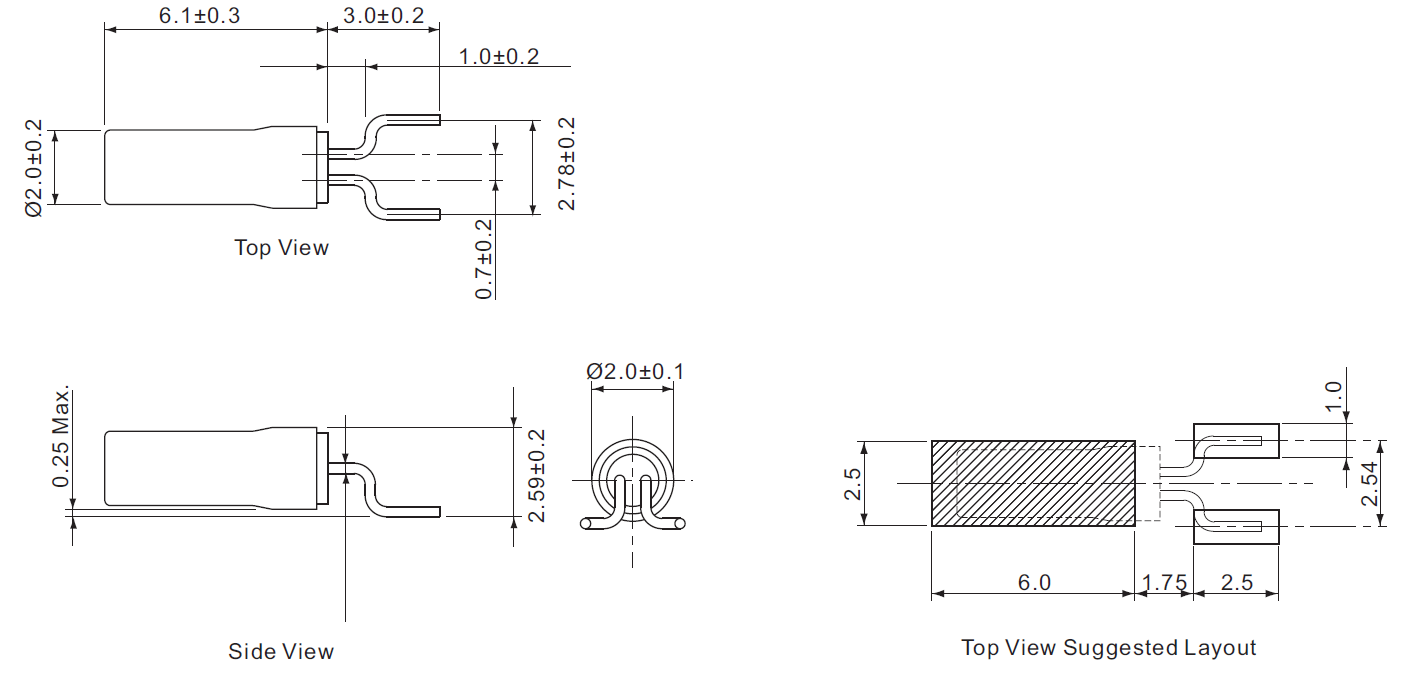

| Product size (L × W × H) (mm) | six × two × two point six |
