Photo | Series | Size(LxWxH)[mm] | Frequency Range | Load capacitance | Tolerance | Sample application | |
---|---|---|---|---|---|---|---|

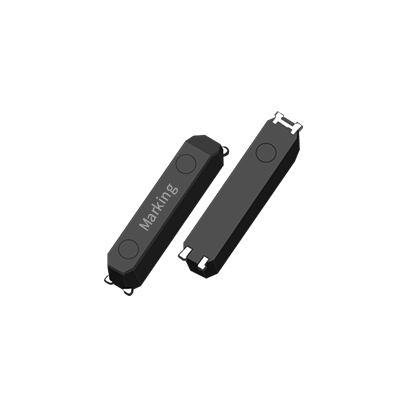

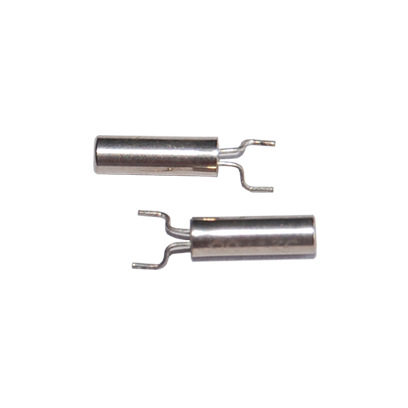

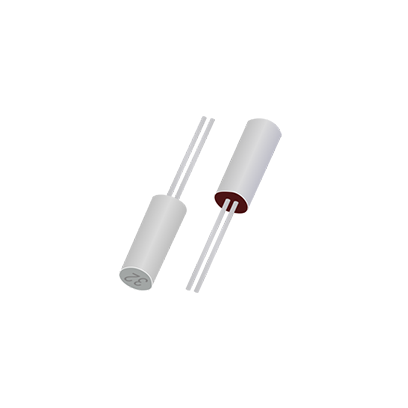

N26/N38 | TF06/308 crystal | 2×6 / 3×8 | 32.768kHz (30kHz~350kHz) | 12.5PF | ±20ppm~±100ppm, 或定制 | Sample Request | ||
N26D | 206D SMT crystal | 6.0×2.0×2.6 | 32.768kHz (30kHz~350kHz) | 12.5PF | ±20ppm~±100ppm, 或定制 | Sample Request | ||

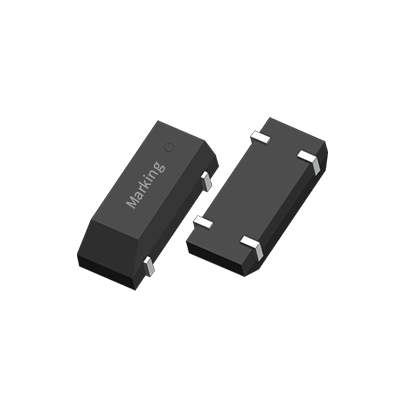

N306 | SMD 8038 SMD 32.768kHz crystal oscillator | 8.0×3.8×2.5 | 32.768kHz | 12.5PF | ±20ppm, 或定制 | Sample Request | ||
N146 | SMD 7015 SMD 32.768kHz crystal oscillator | 7.0×1.5×1.4 | 32.768kHz | 12.5PF | ±20ppm, 或定制 | Sample Request | ||

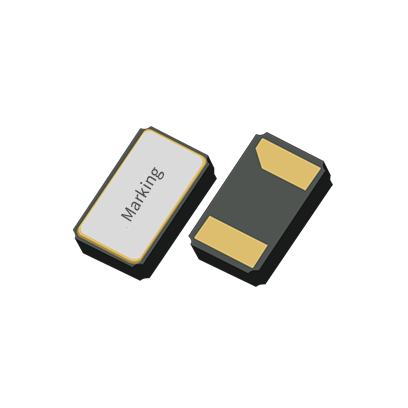

N135 | SMD 3215 SMD 32.768kHz crystal oscillator | 3.2×1.5×0.75 | 32.768kHz | 12.5PF | ±20ppm, 或定制 | Sample Request | ||

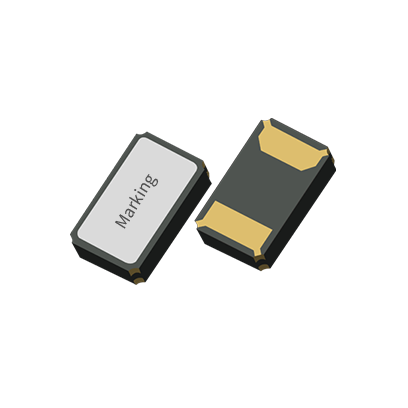

N12M | SMD 2012 chip mounted 32.768kHz crystal oscillator | 2.0×1.2×0.6 | 32.768kHz | 12.5PF | ±20ppm, 或定制 | Sample Request | ||

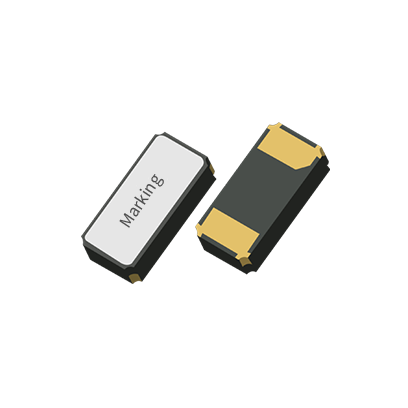

N11N | SMD 1610 SMD 32.768kHz crystal oscillator | 1.6×1.0×0.5 | 32.768kHz | 12.5PF | 10ppm | Sample Request |
