1. Plastic encapsulated SMT tuning fork crystal oscillator (32.768kHz).
2. High reliability environmental performance.
3. High frequency stability and high precision.
4. Ultra small and lightweight, 7.0 × one point five × 1.4 mm.
5. Ribbon packaging, suitable for automatic installation and reflow soldering.
6. Green and environmentally friendly products, certified by RoHS.
7. The SMD 7015 SMT 32.768kHz crystal oscillator is mainly used in electronic products such as digital TV devices, computers, game consoles, home theaters, the Internet of Things, security, smart homes, communication devices, intelligent transportation, and public broadcasting systems.
| model | N146 (SMD 7015 SMD 32.736kHz crystal oscillator) |
| Nominal frequency | 32.768kHz |
| Frequency accuracy (25 ℃) | ± 20ppm, or customized |
| working temperature | -40 ℃~85 ℃ |
| direct capacitance | 1.0pF typical |
| Dynamic capacitance | 6.4fF typical |
| insulation resistance | 500M Ω min |
| Drive power | zero point five μ W max |
| Load capacitance | 12.5pF, or customized |
| Conversion temperature | 25 ℃± 5 ℃ |
| Parabolic Coefficients | (-0.03 ± 0.01) * 10-6/℃2 |
| Aging rate (25 ℃) |
± 3ppm in the first year |
| Storage temperature | -55 ℃~125 ℃ |
| Resonant resistor | 70K Ω max |

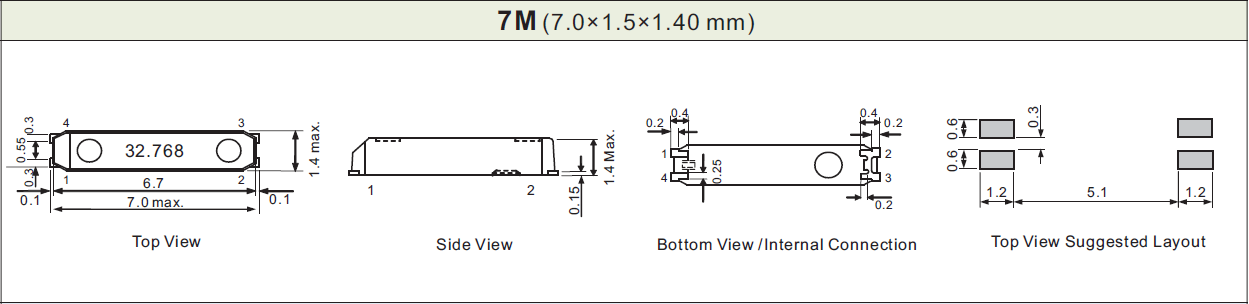

| Product size (L × W × H) (mm) | seven × one point five × one point four zero |
