1. ZTACV/ZTTCV series ceramic crystal oscillators with high cost-effectiveness
2. Can replace Murata brand MURATA ceramic crystal oscillator
3. Frequency range: 8.000MHz~60.000MHz

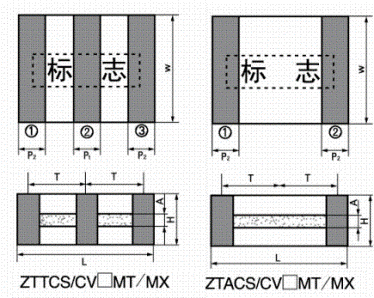

4. Appearance dimensions 3.7 × three point one × 1.0mm, packaged with 2 or 3 pins
5. Characteristics such as high precision, high reliability, heat resistance and vibration resistance
6. Applied to security monitoring, toys, drones, small appliances, radios, and other products
| model | Frequency range (MHz) | Frequency accuracy (%) | Temperature stability (-25~85 ℃) (%) | Working temperature (℃) | Aging rate (10 years) (%) |
| ZTACV/ZTTCV □ MT | 8.000-13.000MHz | ± 0.5 |
± 0.4 |
-25~85 |
± 0.3 |
| ZTACV/ZTTCV □ MX |
16.000~60.000MHz |
± 0.5 |
± 0.3 |
-25~85 |
± 0.3 |
