By combining these resonators with transistors or appropriate ICs, it is possible to design oscillation circuits that do not require adjustment
2. The ZTB series is stable over a wide temperature range and long-term aging
3. Micro, lightweight, standardized, suitable for thin equipment
4. Highly reliable design with excellent environmental resistance.
5. The ZTB series includes fixed, tuned solid-state devices.
6. Working temperature (-20 ° C~80 ° C)

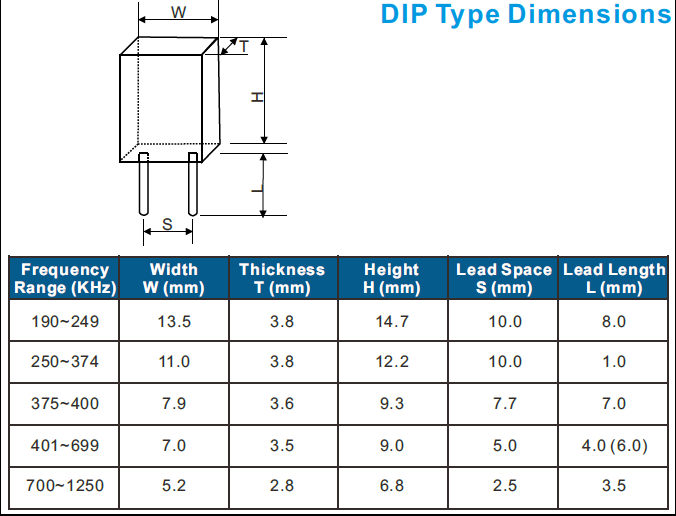

7. Low cost, SMT or plug-in packaging, with frequencies ranging from 190KHz to 1250KHz.
|
Part Number |
Frequency accuracy |
Resonant impedance (Ω) |
Temperature stability (-20~80 ° C) (%) |
Aging rate (10 years) (%) |
LoadCapacity |
||
| Plugin encapsulation | SMT packaging | C1 |
C2 |
||||
| ZTB190-249E | ± 1KHz | ≤ 20 | ± 0.3% | ±0.3% | 330 | 470 | |
|
ZTB250-374E |
±1KHz | ≤ 20 | ±0.3% | ±0.3% | 220 | 470 | |
|
ZTB375-429E |
ZTB375~429Y | ±1KHz | ≤ 20 | ±0.3% | ±0.3% | 120 | 470 |
|
ZTB430-509E |
ZTB430-509Y |
±2KHz | ≤ 20 | ±0.3% | ±0.3% | 100 | 100 |
|
ZTB510~699E |
ZTB510~699Y |
±2KHz | ≤ 20 | ±0.3% | ±0.3% | 100 | 100 |
|
ZTB700-1250E |
ZTB700~1250Y |
± 0.5% | ≤ 70 | ±0.3% | ±0.3% | 100 | 100 |
