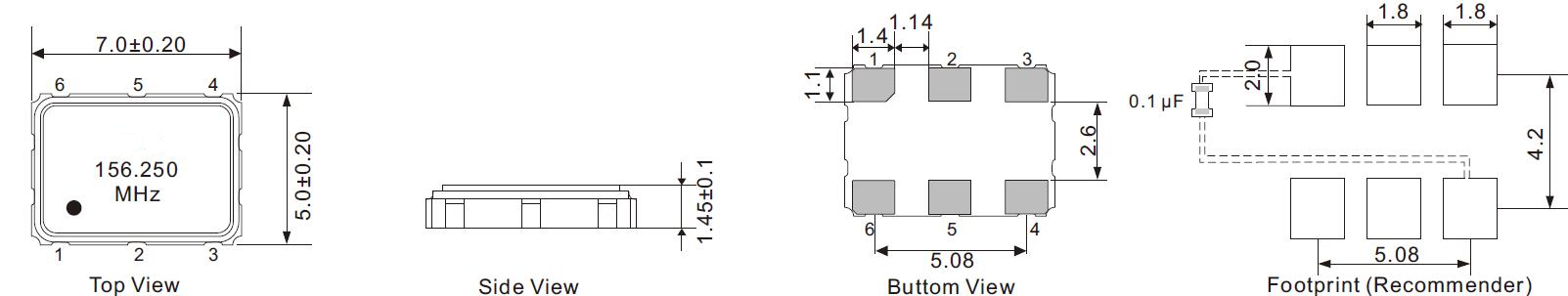

1. LVPECL crystal oscillator with SMT metal packaging, size: 7.0 × five × 1.4 mm.
2. Oscillation mode: fundamental frequency, triple frequency/PLL.
3. Working voltage of 2.5V and 3.3V, supporting three state function.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. LVPECL mode output, high-frequency output range of 10MHz~1500MHz
6. Low phase noise and low jitter.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. The SMD 7050 differential output LVPECL active crystal oscillator is mainly used in electronic products and applications such as fiber optic communication, gigabit network, serial ATA, SCSI, high-end servers, computer peripherals, PCI-Express, SDH, SONET, broadcasting services, mobile communication, base stations, network equipment, aerospace, navigation, etc.
| Item /Type | NDOLP57 (SMD 7050 LV-PECL差分晶振) |
| Dimensions | 7.0×5.0×1.40 |
| Output | LV-PECL |
| Output load |
50Ω (Terminated to Vcc-2.0V) |
| Output frequency range | 10MHz~1500MHz |
| Supply voltage | 2.5V / 3.3V |
| Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating temperature |
-20~ 70oC, -40~ 85oC |
| Current consumption |
100mA max. |
| Disable current |
35mA max. |
| Symmetry |
45%~55% |
| Output voltage Voh (min.) / Vol (max.) |
Vcc-1.1 V min. / Vcc-1.5 V max. |
| Input voltage Vih (min.) / Vol (max.) |
70% Vcc min. / 30% Vcc max. |
| Rise / Fall time |
1ns max. |
| Start-up time |
10ms max. |
| Storage temperature |
-55~ 125oC |
| Phase jitter (12KHz~20MHz) |
1 pSec Max. |
