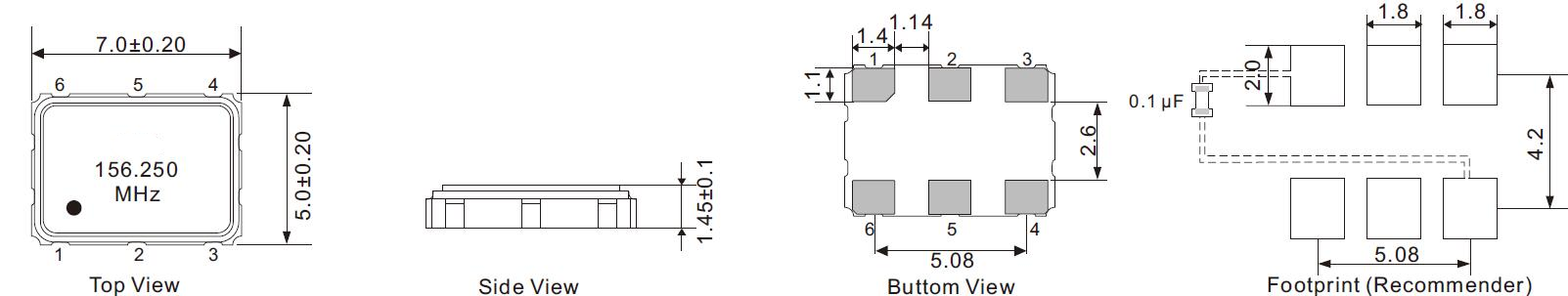

1. SMT metal encapsulated HCSL crystal oscillator, size: 7.0 × five × 1.4 mm.
2. Working voltage of 2.5V and 3.3V, supporting three state function.
3. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
4. HCSL mode output, high-frequency output range 13.5kHz~220MHz
5. Low phase noise and low jitter.
6. Green and environmentally friendly products, certified by RoHS and Pb Free.
7. The SMD 7050 differential HCSL output active crystal oscillator is mainly used in electronic products and applications such as fiber optic communication, gigabit network, serial ATA, SCSI, high-end servers, computer peripherals, PCI-Express, SDH, SONET, broadcasting services, mobile communication, base stations, network equipment, etc.
|
Item / Type |
NDOHC57 (SMD 7050 Differential HCSL Crystal Oscillator) |
|
Dimensions |
7.0×5.0×1.4 |
|
Output |
HCSL |
|
Output load |
50Ω |
|
Output frequency range |
13.5 kHz~220 MHz |
|
Supply voltage |
2.5 V / 3.3 V |
|
Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
|
Operating temperature |
-20~ 70oC, -40~ 85oC |
|
Current consumption |
100mA max. |
|
Disable current |
60mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh / Vol |
0. 75V Typ., 0.66V to 0.85V / 0V Typ., -0.15V to 0.15V |
|
Input voltage Vih (min.) / Vil (max.) |
70% Vcc min. / 30% Vcc max. |
|
Rise time / Fall time |
1ns max. |
|
Start-up time |
10ms max. |
|
Storage temperature |
-55~ 125oC |
|
Phase jitter (12 KHz~20 MHz) |
0. 2 pSec Typ. |
