1. Ultra small-sized SMD 5032 packaged differential crystal oscillator, 5.0 × three point two × 1.2mm
2. LVPECL signal output, ultra-high frequency output range 10MHz~1500MHz
3. Working voltage of 2.5V/3.3V, low power consumption, high precision
4. Supports 3-state functionality
5. Low phase jitter, mainly used in fiber optic communication, storage devices, servers, smart grids, 10 Gigabit Ethernet, base stations and other product equipment
6. Passed RoHS green environmental certification and meets international green environmental requirements
| Item /Type | NDOLP53 (SMD 3225 LV-PECL Differential Crystal) |

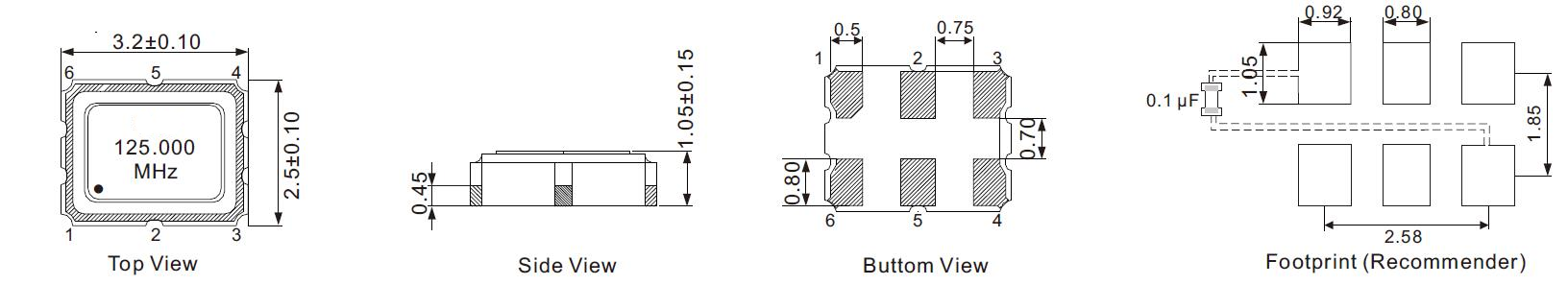

| Dimensions | 3.2×2.5×1.00 |
| Output | LV-PECL |
| Output load |
50Ω (Terminated to Vcc-2.0V) |
| Output frequency range | 10MHz~250MHz |
| Supply voltage | 2.5V / 3.3V |
| Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating temperature |
-20~ 70oC, -40~ 85oC |
| Current consumption |
100mA max. |
| Disable current |
35mA max. |
| Symmetry |
45%~55% |
| Output voltage Voh (min.) / Vol (max.) |
Vcc-1.1 V min. / Vcc-1.5 V max. |
| Input voltage Vih (min.) / Vol (max.) |
70% Vcc min. / 30% Vcc max. |
| Rise / Fall time |
1ns max. |
| Start-up time |
10ms max. |
| Storage temperature |
-55~ 125oC |
| Phase jitter (12KHz~20MHz) |
1 pSec Max. |
