1. Ultra small SMD package, size 2.5 × 2.0 (2520), 3.2 × 2.5 (3225), 5.0 × 3.2 (5032), 7.0 × 5.0 (7050), mm × Mm
2. LVCMOS/LVTTL output, any frequency between 1MHz and 80MHz, accurate to 6 decimal places
3. Frequency stability as low as ± 10ppm
4. Ultra low phase jitter: 0.5ps (12KHz to 20MHz)
5. Compliant with RoHS and REACH, lead-free
6. Low voltage power supply voltage: 1.8V, 2.5V, 3.3V
7. Application scope: Ethernet, WiFi, SATA, computing, storage, telecommunications, industrial control, video, audio, SAS, etc.
|
Item / Type |
SiT8208 |
|

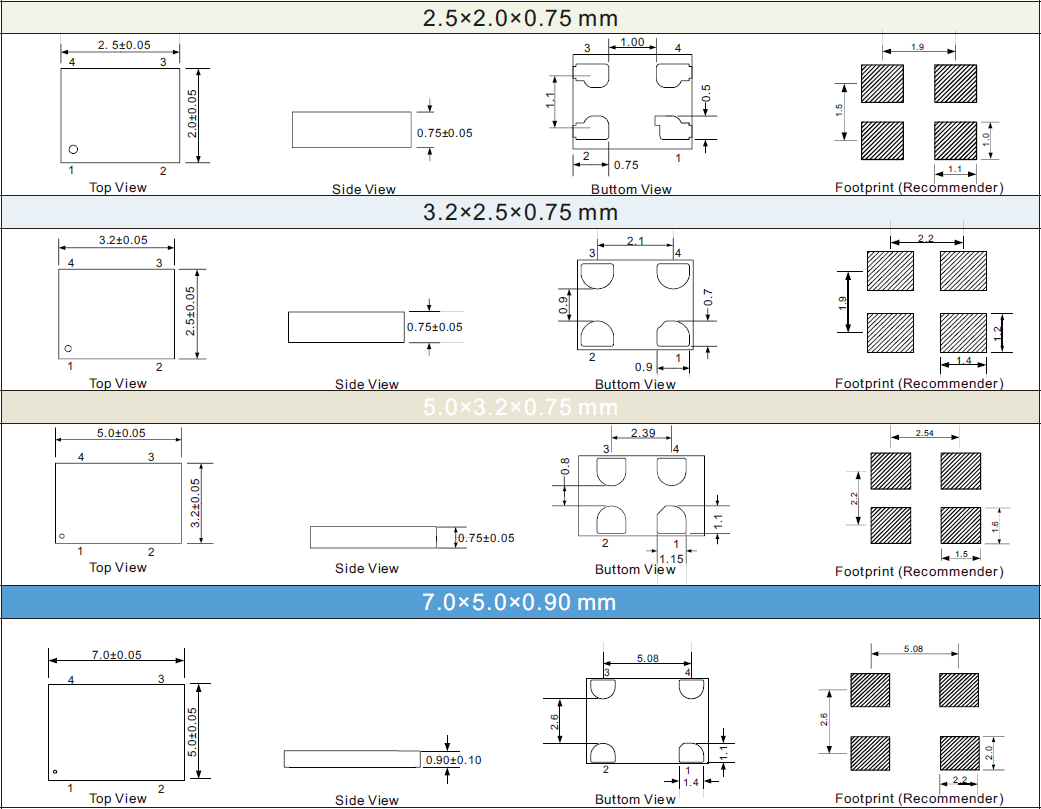

Dimensions |
2.5×2.0×0.75, 3.2×2.5×0.75, 5.0×3.2×0.75, 7.0×5.0×0.9 mm |
|
Output |
LVCMOS /LVTTL |
|
Frequency stability |
±10ppm, ±20ppm, ±25ppm, ±50ppm |
|
Output frequency range |
1MHz~80MHz |
|
Supply voltage |
1.8V, 2.5V, 2.8V, 3.3V |
|
Current cosumption |
33mA max. |
|
OE disable current |
31mA max. |
|
Standby current |
70μA max. |
|
Duty cycle |
45~55% |
|
Rise /Fall time |
2ns max. |
|
Output voltage Voh /Vol |
90% Vdd min. /10% Vdd max. |
|
Input voltage Vih /Vil |
70% Vdd min. /30% Vdd max. |
|
Input pull-up impedance |
2ΜΩ min. |
|
Enable/Diable time |
150ns max. |
|
Start-up time |
10ms max. |
|
Operation temperature |
-20~ 70oC, -40~ 85oC |
|
Storage temperature |
-65~ 150oC |
|
RMS Phase jitter (12 KHz~20 MHz) |
0.5pS Typ. |
