1. Programmable MEMS silicon oscillator, any frequency between 1.000000 MHz and 11000000 MHz
2. Low power consumption and high frequency stability
3. standby mode prolongs battery life
4. Quick start time 5ms
5. Complies with lead-free, Rohs, and REACH standards
|
Item / Type |
SiT8008 |
|
Dimensions |

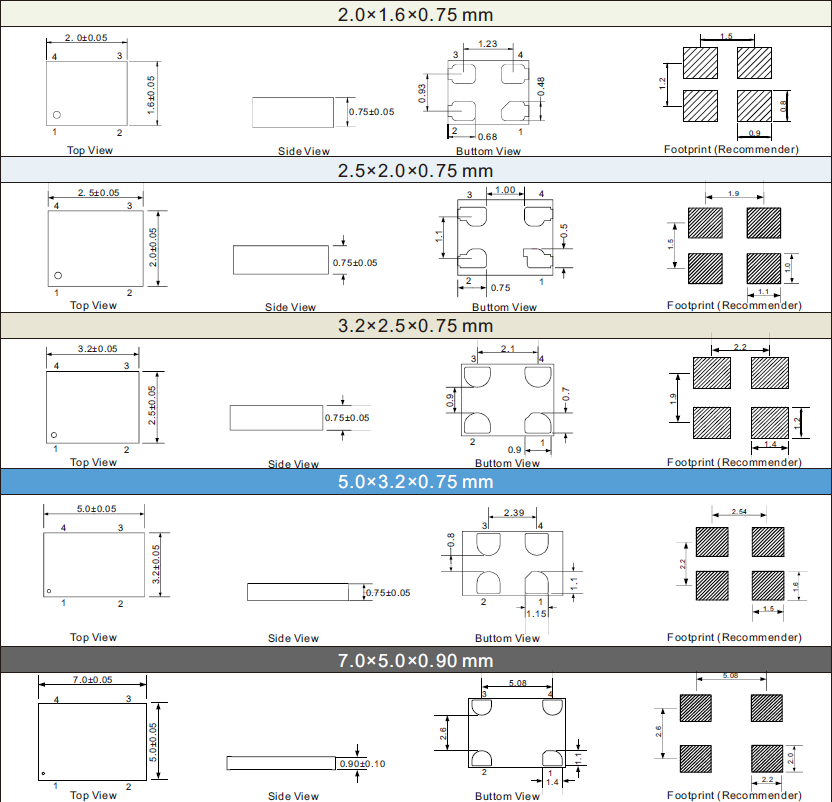

2.0×1.6×0.75, 2.5×2.0×0.75, 3.2×2.5×0.75, 5.0×3.2×0.75, 7.0×5.0×0.9 mm |
|
Output |
LVCMOS /HCMOS |
|
Frequency stability |
±20ppm, ±25ppm, ±50ppm |
|
Output frequency range |
1MHz~110MHz |
|
Supply voltage |
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 2.25V~3.63V |
|
Current cosumption |
4.5mA max. |
|
OE disable current |
4.2mA max. |
|
Standby current |
4.3μA max. |
|
Duty cycle |
45~55% |
|
Rise /Fall time |
2.5ns max. |
|
Output voltage Voh /Vol |
90% Vdd min. /10% Vdd max. |
|
Input voltage Vih /Vil |
70% Vdd min. /30% Vdd max. |
|
Input pull-up impedance |
2ΜΩ min. |
|
Enable/Diable time |
130ns max. |
|
Start-up time |
5ms max. |
|
Operation temperature |
-20~ 70oC, -40~ 85oC |
|
Storage temperature |
-65~ 150oC |
|
RMS Phase jitter (12 KHz~20 MHz) |
2pS max. |
