1. Chip mounted constant temperature crystal oscillator (OCXO)
2. Size 9.7 × seven point five × 4.1 mm, ultra small size 4-pin SMT package
3. The frequency range is from 10MHz to 40MHz.
4. Has stability of ± 20ppb within the range of -40 o C to 85 o C.
5. Third layer (overall ± 4.6ppm, including 10 years of aging time.)
6. Voltage control (electronic frequency adjustment) is available.
7. Compliant with RoHS
8. Application scope: In industries such as smart batteries, digital switches, telecommunications equipment, synthesizers, testing and instrumentation.
| Type /Item | NOC97BG (SMD OCXO) | Note | |
| Output Frequency | 10MHz~40MHz | ||
| Waveform | Rectangular/Clipped Sinewave | ||
| '1' Level |
Rectangular |
2.4V min. | |
| '0' Level | 0.4V max. | ||
| Duty Cycle | 45%~55% | ||
| Clipped Sinewave | 0.8Vp-p min. | ||
|
Load (Rectangular/Clipped Sine) |
15pF / 10Kohm//10pF | ||
| Spurious | -60dBc max. | ||
| Frequency Stability | Tolerance | ±20ppb | |
| vs. Temperature |
±5ppb~±50ppb |
||
| vs. Supply voltage |
±5ppb max. |
||
| vs. Load |
±5ppb max. |
||
| vs. Warm-up |
±0.1ppm max. |
||
| vs. aging | - | ||
| Daily | ±3.0ppb max. | ||
| Yearly |
±0.6ppm max. |
||
| 10 Years |
±3.0ppm max. |
||
| Phase Noise | @ 10Hz | -92dBc/Hz | |
|
@ 100Hz |
-120dBc/Hz |
||
|
@ 1KHz |
-140dBc/Hz |
||
|
@ 10KHz |
-150dBc/Hz |
||
| Electrical Frequency Adjustment | Range |
±5ppm max. |
|
| Control | 0~3.3V |
5.0V input available |
|
| Slope | Positive | ||
| Input Impedance | 100KΩ min. | ||
| Input Power | Voltage | 3.3V | 5.0V input available |
| Current | 350mA max. | ||
| Steady state | 0.4W max. | ||
| Operating Temperature | -20~ 70℃, -40~ 85℃ | ||
| Storage Temperature |
-40~ 85℃ |
||

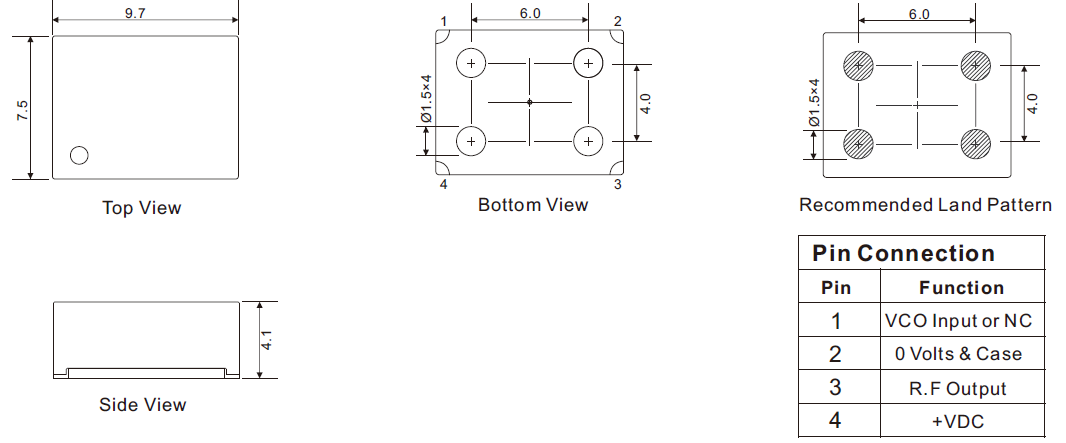

| Dimensions (L×W×H)(mm) | 9.7×7.5×4.1 | ||
