1. Thermostatic crystal oscillator OCXO
2. Size 25.4 × twenty-two point one × 13.2 mm, SMD chip packaging
3. Sine wave output, frequency range from 10MHz to 100MHz.
4. Has stability of ± 20ppb within the range of -40 o C to 85 o C.
5. SC cut crystal.
6. Voltage control (electronic frequency adjustment) is available.
7. Compliant with RoHS
8. Application scope: SDH/SONET, base stations, digital switches, testing equipment, synthesizers, measurement equipment, etc.
| Type /Item | NOC2522.... .5P | SMD Crystals OCXO | Note | |
| Output Frequency | 10MHz~100MHz | ||
| Waveform | Sine Wave | ||
| Level | 8dBm min. | ||
| Harmonics | -30dBc max. | ||
|
Load |
50Ω | ||
| Spurious | -60dBc max. | ||
| Frequency Stability | Tolerance | ±10ppb | |
| vs. Temperature |
±5ppb~±100ppb |
||
| vs. Supply voltage |
±5ppb max. |
||
| vs. Load |
±5ppb max. |
||
| vs. Warm-up |
±50ppb max. |
||
| vs. aging | - | ||
| Daily | ±0.5ppb max. | ||
| Yearly |
±50ppb max. |
||
| 10 Years |
±0.3ppm max. |
||
| Phase Noise | @ 10Hz | -142dBc/Hz max. | |
|
@ 100Hz |
-155dBc/Hz max. |
||
|
@ 1KHz |
-165dBc/Hz max. |
||
|
@ 10KHz |
-170dBc/Hz max. |
||
| Electrical Frequency Adjustment | Range |
±3.0ppm max. |
|
| Control | 0~4V/ 0~10V |
5.0V/12V input available |
|
| Slope | Positive | ||
| Linearity | ±10% | ||
| Input Impedance | 100KΩ min. | ||
| Input Power | Voltage | 12V | 5.0V input available |
| Current | 500mA max. | ||
| Steady state | 2.1W max. | ||
| Operating Temperature | -20~ 70℃, -40~ 85℃ | ||
| Storage Temperature |
-40~ 85℃ |
||

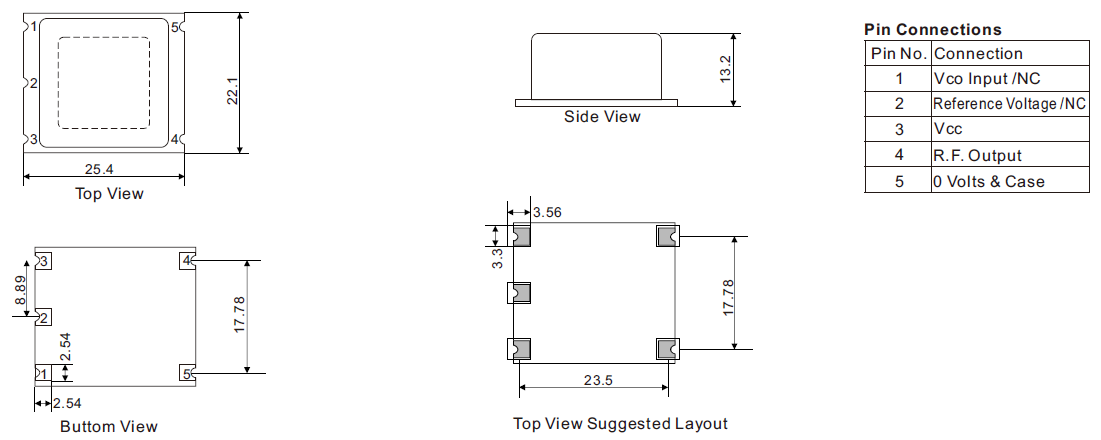

| Dimensions (L×W×H)(mm) | 25.4×22.1×13.2 | ||
