1. Ultra small size, SMT metal packaging, size: 2.5 × two × 0.55mm
2. Ultra high precision and frequency stability.
3. Excellent heat resistance and environmental characteristics.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. Green and environmentally friendly products, certified by RoHS and Pb Free.
6. Wide frequency output range from 12MHz to 54MHz.
7. SMD 2016 SMT crystal oscillators are mainly used in wireless communication, network communication, Bluetooth, DVC, DSC, PDA, computers and computer peripherals, wearable smart devices, Internet of Things, M2M, GPS and other electronic products.
| model | N22 (SMD 2520 chip mounted crystal oscillator) |
| frequency range | 12MHz~54MHz |
| Frequency tolerance (@ 25 ℃) | ± 10ppm, ± 20ppm or customized |
| Frequency accuracy (operating temperature) |
± 10ppm, ± 20ppm or customized |
| working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized |
| direct capacitance | 3pF max |
| Drive power |
ten μ W typical value (200 μ W max |
| Load capacitance | 8pF, 10pF, or customized |
| Resonant resistor | 150 Ω max (12MHz~16MHz) |
| 10 Ω max (16MHz~30MHz) | |
|
70 Ω max (30MHz~54MHz) |
|
| Aging rate | ± 3ppm/year max |
| Storage temperature | -55 ℃~125 ℃ |

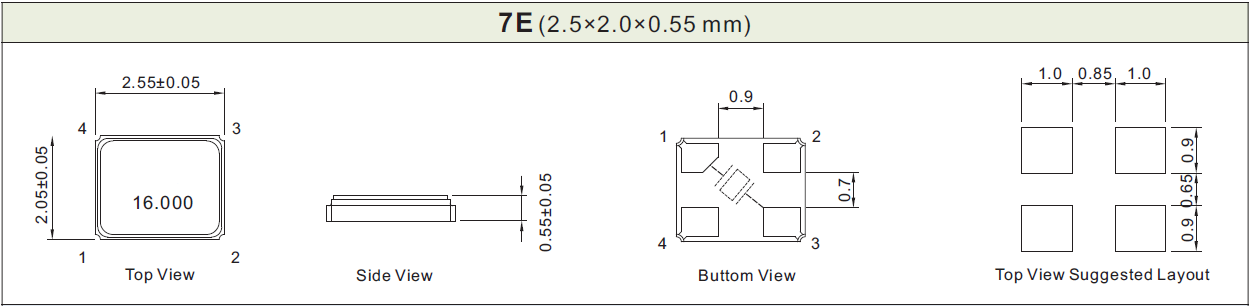

| Product size (L × W × H) (mm) | two point five × two × zero point five five |
