1. Ultra small size, SMT metal packaging, size 1.2 × one × 0.30mm
2. High precision and high frequency stability.
3. High reliability.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. Wide frequency output range of 24MHz~54MHz.
6. Green and environmentally friendly products, certified by RoHS and Pb Free.
7. SMD 1210 SMT crystal oscillators are mainly used in electronic products and applications such as mobile phones, wearable smart devices, network communication, Bluetooth, GPS, computers and computer peripherals, digital TVs, wireless communication, Internet of Things, smart homes, smart cities, etc.
| model | N11S (SMD 1210 chip mounted oscillator) |
| frequency range | 24MHz~54MHz |
| Frequency tolerance (@ 25 ℃) | ± 10ppm, ± 20ppm or customized |
| Frequency stability (operating temperature) |
± 10ppm, ± 20ppm or customized |
| working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized |
| direct capacitance | 3pF max |
| Drive power |
ten μ W typical value (200μ W max） |
| Load capacitance | 8pF, 10pF, or customized |
| Resonant resistor | 150 Ω (24MHz~27.12MHz) |
| 100 Ω (27.12MHz~38.4MHz) | |
| 60 Ω (38.4MHz~54MHz) | |
| Aging rate |
± 3ppm/yearMax |
| Storage temperature | -55 ℃~125 ℃ |

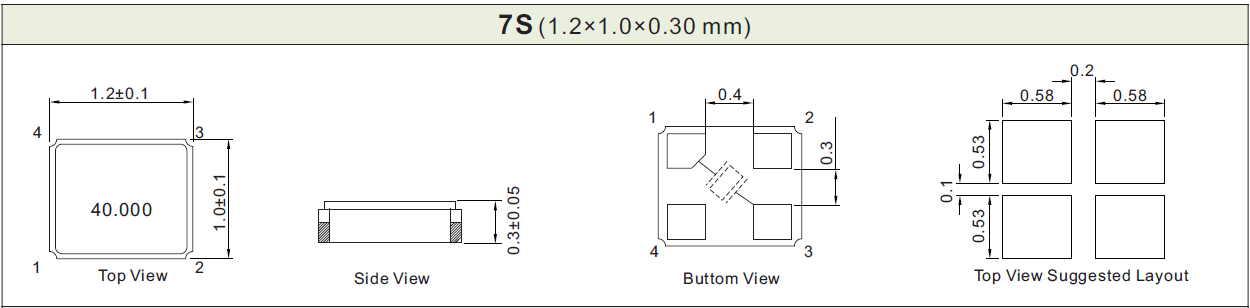

| Product size (L × W × H) (mm) | one point two × one × zero point three |
