1.2520 size ultra small lightweight SMD crystal unit with a thickness of only 0.75mm
2. Frequency range from 12MHz to 64MHz
3. High precision and stability
4. Automatic installation and reflow soldering
5. Mainly used in wireless communication, PC, DSC, PDA, wearable devices, etc
6. RoHs Directive Exemption from Containing Pb in Sealed Glass
| model | N22G (SMD 2520 SMD crystal oscillator Glass) |
| frequency range | 12MHz~64MHz |
| Frequency tolerance (@ 25 ℃) | ± 10ppm, ± 20ppm or customized |
| Frequency accuracy (operating temperature) |
± 10ppm, ± 20ppm or customized |
| working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized |
| direct capacitance | 3pFmax |
| Drive power |
ten μ W typical value (200 μ W max |
| Load capacitance | 8pF, 10pF, or customized |
| Resonant resistor | 200 Ω max (12MHz~13MHz) |
| 150 Ω max (13MHz~16MHz) | |
|
100 Ω max (16MHz~20MHz) |
|
|
80 Ω max (20MHz~27MHz) |
|
|
60 Ω max (27MHz~64MHz) |
|
| Aging rate | ± 3ppm/year max |
| Storage temperature | -40 ℃~85 ℃ |

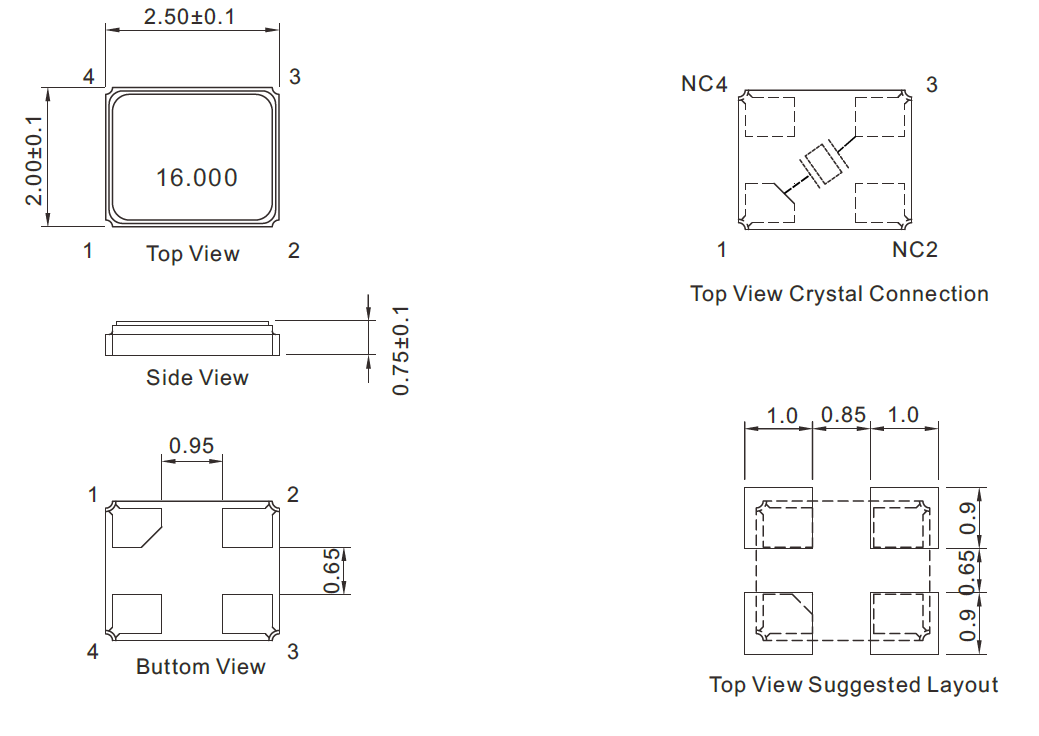

| Product size (L × W × H) (mm) | two point five × two × zero point seven five |
