1. The use of AT cutting chips has good low spurious performance
2. Wide frequency range: 3MHz~100MHz
3. Compact appearance and low cost
4. Excellent frequency stability
5. High stability and reliability with temperature changes
6. Product size: 10.7 × four point three × 2.5 (3.5) [49S/49SS] mm
7. Applications: Bluetooth, security, Internet of Things, wireless communication, consumer electronics, PC peripherals, etc
8. RoHS Compliant/Aluminum Free Environmental Protection
|
model |
NUS/NUSS (HC-49S crystal oscillator/HC-49SS crystal oscillator) | |
|
frequency range |
3MHz~100MHz | |
|
Frequency tolerance @ 25 ℃ |
± 10ppm~± 30ppm, or customized | |
|
Frequency stability (operating temperature) |
± 10ppm~± 30ppm, or customized |
|
|
working temperature |
-20℃~70℃, -40℃~85℃, or customized | |
|
direct capacitance |
7pF Max | |
|
Drive power |
one hundred μ W typical value (500μ W Max） | |
|
Load capacitance |
8pF~32pF, or customized | |
|
Resonant resistance (ESR) |
3MHz~3.5MHz |
300 Ω max Fund |
|
3.5MHz~6MHz |
120 Ω Max Fund |
|
|
6MHz~10MHz |
60 Ω Max Fund |
|
|
10MHz~14MHz |
40 Ω Max Fund |
|
|
14MHz~48MHz |
30 Ω Max Fund |
|
|
27MHz~30MHz |
100 Ω Max 3rd Overtone |
|
|
30MHz~50MHz |
80 Ω Max 3rd Overtone |
|
|
50Hz~100MHz |
60 Ω Max 3rd Overtone |
|
|
Storage temperature |
-55℃~125℃ | |
|
Aging rate@25 ℃ |
± 3ppm/year Max |
|
|

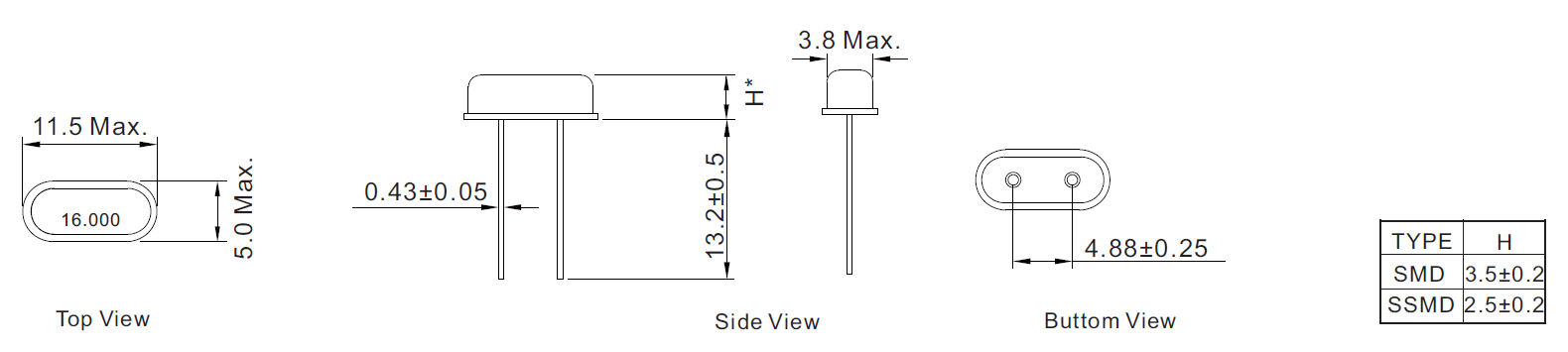

Product size (L × W × H) |
ten point seven × four point five× 3.5/2.5 [49S/49SS] mm |
|
