1. Adopting HC-49T packaging and 3-pin plug-in packaging
2. Compliant with RoHS environmental standards
3. Excellent heat and impact resistance performance
4. Basic frequency range: 10.7MHz~15MHz
5. Supports crystal filters with 2/4/6/8 Poles
6. Applied to wireless communication, walkie talkies, handheld terminals, automotive electronics and other products
| Channel Spacing (KHz) | Model | No of ploes |
Pass Bandwidth |
Stop Bandwidth |
Ripple | Insertion Loss |
Guaranteed Attenuation |
Terminating Impedance |

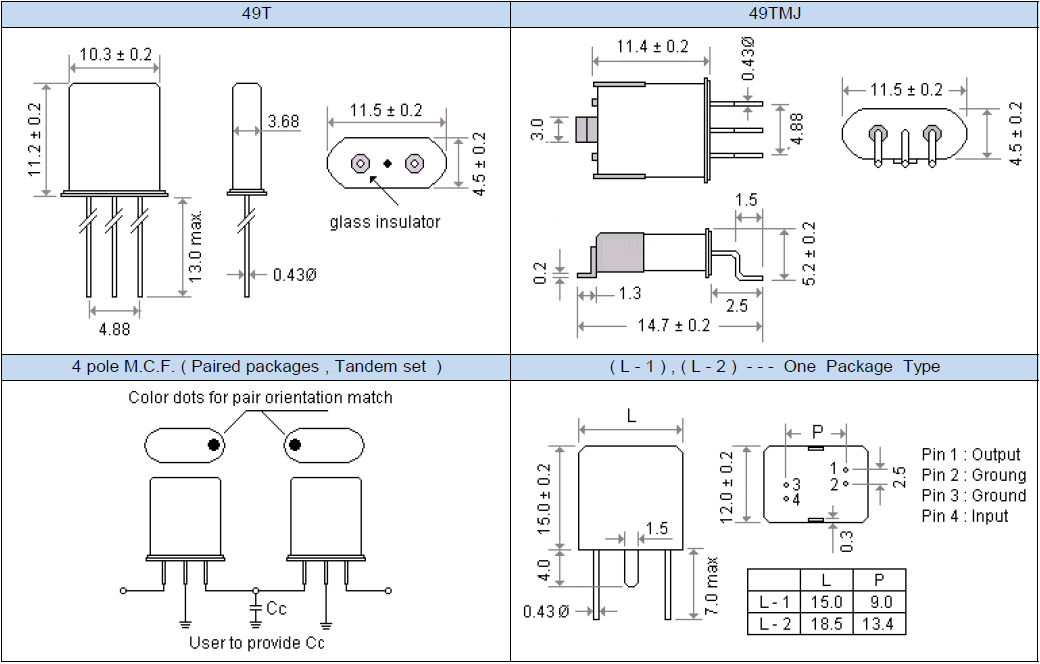

Package |
|||||
| dB | KHz (min.) | dB | KHz (max.) | dB (max.) | dB (max.) | dB | KHz | ohms // pF | Tandem set | One Package | ||||
|
12.5 |
10M7.5A |
2 | 3 | ±3.75 | 20 | ±18 |
0.5 |
1.5 | 35 |
±300~±1000 |
1.8K // 5.0 |
49T |
||
|
10M7.5B |
4 | 3 |
±3.75 |
40 |
±14 |
1.0 | 2.5 | 65 |
±300~±1000 |
1.8K // 4.5 |
49T a pair |
|||
|
10M7.5C |
6 | 3 |
±3.75 |
45 |
±8.75 |
2.0 | 3.5 | 65 |
±12.5~±300 |
1.8K // 3.5 |
49T 3 pcs |
L1 | ||
|
10M7.5D |
8 | 3 |
±3.75 |
65 |
±8.75 |
2.0 | 4.0 | 90 |
±12.5~±300 |
1.8K // 3.5 |
49T 4 pcs |
L2 | ||
|
20.0 |
10M12A |
2 | 3 |
±6.0 |
18 |
±25 |
0.5 | 2.0 | 35 |
±300~±1000 |
2.5K // 2.5 |
49T |
||
|
10M12B |
4 | 3 |
±6.0 |
40 |
±20 |
1.0 | 2.5 | 65 |
±300~±1000 |
2.5K // 1.5 |
49T a pair |
|||
|
10M12C |
6 | 3 |
±6.0 |
45 |
±15 |
2.0 | 4.0 | 65 |
±20~±300 |
2.5K // 1.5 |
49T 3 pcs | L1 | ||
|
10M12D |
8 | 3 |
±6.0 |
65 |
±15 |
2.0 | 2.0 | 90 |
±20~±300 |
2.5K // 1.5 |
49T 4 pcs | L2 | ||
|
25.0 |
10M15A | 2 | 3 |
±7.5 |
18 |
±25 |
0.5 | 1.5 | 35 |
±300~±1000 |
3.0K // 2.0 |
49T |
||
|
10M15B |
4 | 3 |
±7.5 |
40 |
±25 |
1.0 | 2.5 | 55 |
±300~±1000 |
3.0K // 1.5 |
49T a pair |
|||
|
10M15C |
6 | 3 |
±7.5 |
45 |
±18 |
2.0 | 3.0 | 65 |
±25~±300 |
3.0K // 1.5 |
49T 3 pcs |
L1 | ||
|
10M15D |
8 | 3 |
±7.5 |
65 |
±18 |
2.0 | 4.0 | 90 |
±25~±300 |
3.0K // 1.5 |
49T 4 pcs |
L2 | ||
|
50.0 |
10M30A |
2 | 3 |
±15 |
15 |
±50 |
0.2 | 1.5 | 30 |
±300~±1000 |
5.0K // 0 |
49T |
||
|
10M30B |
4 | 3 |
±15 |
30 | ±40 |
1.0 |
2.5 | 30 |
±300~±1000 |
5.5K // -1.0 |
49T a pair |
|||
|
10M30C |
6 | 3 |
±15 |
60 | ±45 |
2.0 |
3.0 | 65 |
±45~±300 |
5.5K // -1.0 |
49T 3 pcs |
L1 | ||
|
10M30D |
8 | 3 |
±15 |
60 | ±30 |
2.0 |
3.5 | 90 |
±50~±300 |
5.5K // -1.0 |
49T 4 pcs |
L2 | ||
|
If you want to know more specifications, please contact with out sales department directly. |
||||||||||||||
