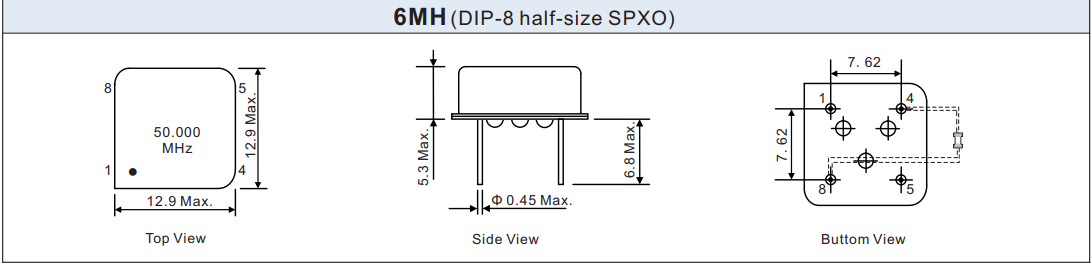

1. All metal sealed welded package, 8Pin half size package, size 12.9 × twelve point nine × 5.3 mm.
2. Wide frequency output range of 0.25MHz~180MHz.
3. Supports three state functionality.
4. CMOS output mode, fundamental or triple frequency oscillation mode.
5. Wide frequency output range of 0.25MHz~180MHz
6. 3.3V/5.0V working voltage, low phase noise, high accuracy.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. Full size plug-in active crystal oscillators are mainly used in electronic product equipment such as communication, wireless communication, testing instruments, industrial equipment, aerospace, frequency converters, etc.
| Item /Type | NSPHS/ DIP-8 Full Size Plug-in Active Crystals |
| Dimensions |
12.9×12.9×5.30 mm |
| Output Type | CMOS /HCMOS |
| Output Load | 15pF, or specify |
| Output Frequency Range | 0.25MHz~180MHz |
| Supply Voltage | 3.3V / 5.0V |
| Frequency Stability(All Condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating Temperature Range |
-20~ 70oC, -40~ 85oC, or specify |
| Current Consumption |
10 mA ~ 45 mA (frequency dependent) |
| Stand-by Current | 20μA max. |
| Symmetry | 40%~60% |
|
Output voltage Voh (min.) |
90% Vcc min. /Vcc-0.4V min. |
|
Output voltage Vol (max.) |
10% Vcc max. /0.4V max. |
|
Input voltage Vih (min.) |
80% Vcc min. |
|
Input voltage Vil (max.) |
20% Vcc max. |
|
Rise time / Fall time |
5ns max. |
|
Start-up time |
10ms max. |
|
Storage temperature Range |
-55~ 125oC |
|
Aging |
±3ppm /year max. |
