1. Ultra small size, SMT metal encapsulated active crystal oscillator, size 2.0 × one point six × 0.75mm.
2. High precision and high frequency stability.
3. Supports three state functionality.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. High frequency output range: 1MHz~220MHz
6. Low operating voltage of 1.8V~3.3V, low phase noise and jitter.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. SMD 2016 active crystal oscillators are mainly used in mobile phones, wearable smart devices, network communication, WiLAN, WiMAX, DVC, digital TVs, gaming devices, Blu ray players, audio devices, camera modules, automotive electronics, computers and computer peripherals, USB devices, consumer electronics and other electronic products and applications.
| model | NSP21 2016 crystal oscillator | ||||
| Material code | NSP21 | ||||
| type of output | CMOS | ||||
| Output load | 15pF, or customized | ||||
| Oscillation mode | fundamental frequency | ||||
| working voltage | 1.8V, 2.5V, 3.3V | ||||
| frequency range | 1MHz~220MHz | ||||
| Adjusting frequency difference | ± 25ppm, or customized | ||||
| working temperature | -20~70 ℃, -40~85 ℃, or customized | ||||
| Tristate |
0.1VDD/0.9VDD |
||||
| Duty cycle | 45~55% | ||||
| Support current | 5 mA max | ||||
| Rise/Fall Time | 5 ns max | ||||
| Start time | 5 ms max | ||||
| Storage temperature | -55~125 ℃, or customized | ||||
| Phase jitter (12KHz~20MHz) | 1 ps max | ||||
| Aging rate (25 ℃) | ± 3ppm/year max | ||||

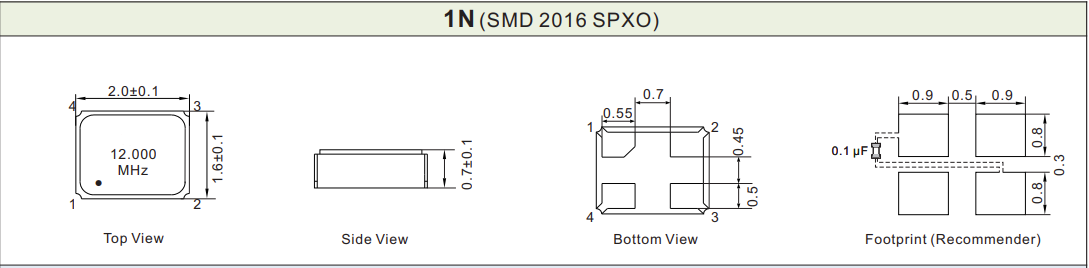

| Product size (mm) | 2.0 * 1.6 * 0.75mm | ||||
| Packaging quantity | 3000pcs/ volume | ||||
| 1. Ultra small size, SMT metal encapsulated active crystal oscillator, size 2.0 × one point six × 0.75mm. | |||||||
| 2. High precision and high frequency stability. | |||||||
| 3. Supports three state functionality. | |||||||
| 4. Reel ribbon packaging, can be used for automatic installation and reflow soldering. | |||||||
| 5. High frequency output range: 1MHz~220MHz | |||||||
| 6. Low operating voltage of 1.8V~3.3V, low phase noise and jitter. | |||||||
| 7. Green and environmentally friendly products, certified by RoHS and Pb Free. | |||||||
|
8NSP212016 active crystal oscillators are mainly used in mobile phones, wearable smart devices, network communication, WiLAN, WiMAX, DVC, digital TVs, gaming devices, Blu ray players, audio devices, camera modules, automotive electronics, computers and computer peripherals, USB devices, consumer electronics and other electronic products and applications.
|
