1. Low loss surface acoustic wave devices
2. Low amplitude ripple

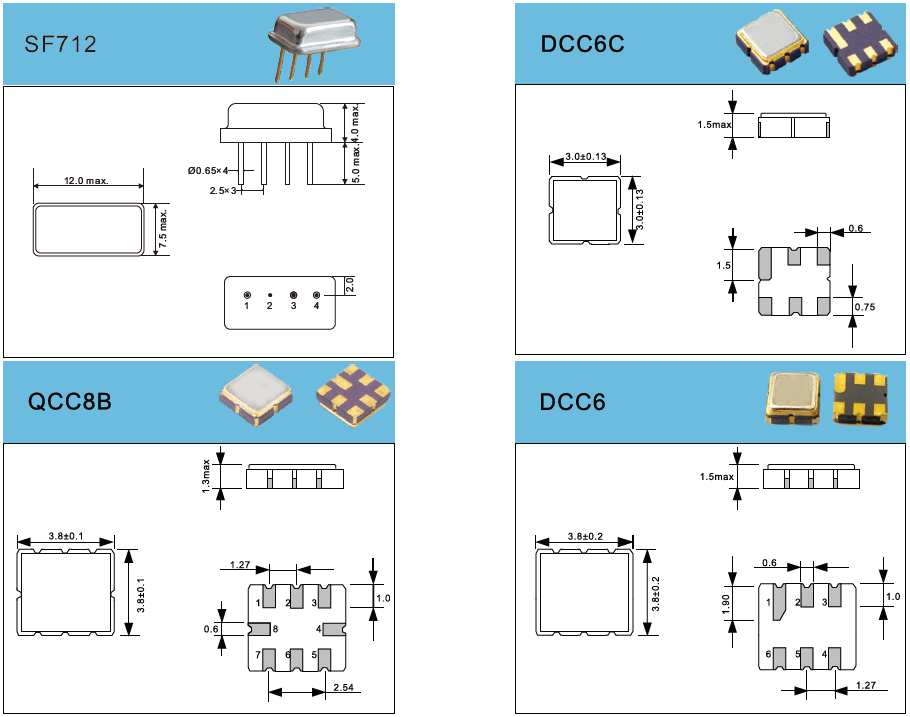

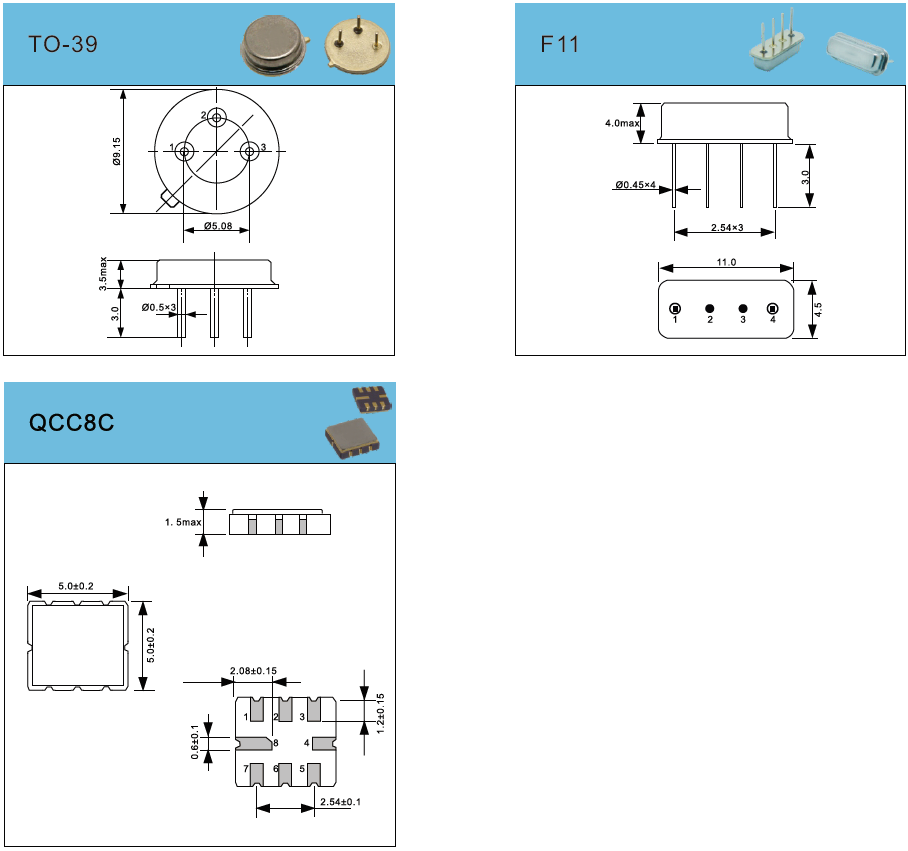

3. Multiple packaging sizes, F12 (10.5 * 5.0 * 3.5), F11 (11.3 * 4.8 * 3.5), TO39, QCC8B (5.0 * 5.0 * 1.5), QCC8C (5.0 * 5.0 * 1.5), DCC6 (3.8 * 3.8 * 1.5), DCC6C (3.0 * 3.0 * 1.5)
4. Compliant with RoHS green environmental certification
5. Mainly used in wireless RF products, such as Bluetooth, wireless communication, pagers, wireless walkie talkies, remote control, military, maritime and other products
| Type | Centre frequency (MHz) | 通帶帶寬(MHz) | depletion (dB)(max) | Lock |
|
SF1037 |
110.00 | 0.30 | 3.50 | F12 |
|
SF1119 |
110.00 | 1.00 | 4.40 | F11 |
|
SF1005 |
110.592 | 0.30 | 3.50 | F12 |
|
SF1003 |
110.592 | 1.50 | 2.60 | QC8C |
|
SF1118 |
110.60 | 1.50 | 4.80 | F11 |
|
SF4053 |
479.50 | 17.0 | 18.00 | TO39 |
|
SF4023 |
479.50 | 17/26 | 20.00 | TO39-4 |
|
SF4010 |
480.00 | 8.00 | 20.00 | QC8C |
|
SF4014 |
480.00 | 4.00 | 2.00 | DCC6 |
|
SF4168 |
480.00 | 20.00 | 2.00 | DCC6 |
|
SF6008 |
675.00 | 25.00 | 1.70 | DCC6 |
|
SF7010 |
740.00 | 12.00 | 3.10 | DCC6 |
|
SF7020 |
750.00 | 50.00 | 3.00 | DCC6 |
|
SF7126 |
750.00 | 5.00 | 2.80 | DCC6C |
|
SF7139 |
750.00 | 50.00 | 3.00 | QC8B |
| SF7011 | 752.50 | 25.00 | 2.40 | DCC6C |
| SF7012 |
752.50 |
25.00 | 2.50 | F11 |
| SF7022 |
752.50 |
25.00 | 1.40 | F11 |
| SF7024 |
752.50 |
18.00 | 1.80 | DCC6C |
| SF7128 | 768.00 | 20.00 | 2.20 | QC8B |
| SF8023 | 868.00 | 4.00 | 3.20 | DCC6C |
| SF8010 | 869.00 | 2.00 | 2.40 | DCC6C |
| SF9008 | 914.00 | 4.00 | 3.20 | F11 |
| SF9134 | 915.00 | 26.00 | 2.40 | DCC6 |
| SF9135 |
915.00 |
26.00 | 2.60 | DCC6C |
| SF9638 |
915.00 |
10.00 | 2.60 |
DCC6C |
| SF8022 | 823.00 | 4.00 | 3.10 |
DCC6C |
| SF8129 | 829.00 | 10.00 | 2.40 |
DCC6C |
| SF8028 | 830.00 | 6.00 | 2.40 |
DCC6C |
| SF8002 | 835.00 | 10.00 | 2.60 |
DCC6C |
| SF8008 | 836.50 | 25.00 | 2.40 |
DCC6C |
| SF8009 | 842.50 | 5.00 | 2.50 |
DCC6C |
| SF8021 | 875.00 | 10.00 | 2.30 |
DCC6C |
| SF8012 | 876.00 | 10.00 | 2.30 |
DCC6C |
| SF8011 | 881.50 | 25.00 | 2.30 |
DCC6C |
| SF8007 | 887.00 | 4.00 | 2.50 |
DCC6C |
| SF8025 | 897.00 | 24.00 | 2.40 |
DCC6C |
| SF8017 | 897.00 | 24.00 | 2.60 |
DCC6C |
| SF8006 | 897.50 | 35.00 | 2.30 |
DCC6C |
| SF8013 | 897.50 | 35.00 | 1.90 |
DCC6C |
| SF8036 | 899.00 | 24.00 | 2.20 |
DCC6C |
| SF8024 | 899.00 | 20.00 | 2.00 |
DCC6C |
| SF8040 | 899.00 | 20.00 | 2.50 |
DCC6C |
| SF8037 | 899.00 | 10.00 | 2.40 |
DCC6C |
| SF9073 | 900.00 | 30.00 | 2.50 |
DCC6C |
| SF9634 | 902.50 | 30.00 | 2.70 |
DCC6C |
| SF9088 |
902.50 |
25.00 | 2.50 |
DCC6C |
| SF9606 |
902.50 |
25.00 | 2.20 |
DCC6C |
| SF9044 | 932.00 | 4.00 | 2.70 |
DCC6C |
| SF9617 | 942.00 | 24.00 | 2.50 |
DCC6C |
| SF9628 | 942.00 | 24.00 | 2.00 |
DCC6C |
| SF9003 | 942.50 | 35.00 | 2.20 |
DCC6C |
| SF9609 | 944.00 | 20.00 | 2.10 |
DCC6C |
| SF9629 |
944.00 |
20.00 | 1.80 |
DCC6C |
| SF9637 |
944.00 |
20.00 | 3.00 |
DCC6C |
| SF9660 |
944.00 |
10.00 | 2.40 |
DCC6C |
| SF9064 | 945.00 | 30.00 | 2.70 |
DCC6C |
| SF9085 | 947.50 | 25.00 | 2.30 |
DCC6C |
| SF9613 | 947.50 | 25.00 | 2.10 |
DCC6C |
| SF9096 | 1722.50 | 25.00 | 2.00 |
DCC6C |
| SF9607 | 1722.50 | 25.00 | 1.80 |
DCC6C |
| SF9623 | 1732.50 | 45.00 | 2.50 |
DCC6C |
| SF9621 | 1740.00 | 45.00 | 2.30 |
DCC6C |
| SF9054 | 1745.00 | 20.00 | 2.30 |
DCC6C |
| SF9094 | 1745.00 | 20.00 | 2.30 |
DCC6C |
| SF9048 | 1747.50 | 75.00 | 2.50 |
DCC6C |
| SF9620 | 1747.50 | 75.00 | 2.80 |
DCC6C |
| SF9053 | 1765.00 | 20.00 | 2.20 |
DCC6C |
| SF9065 | 1770.00 | 30.00 | 2.30 |
DCC6C |
| SF9092 | 1795.00 | 20.00 | 2.40 |
DCC6C |
| SF9149 | 1800.00 | 30.00 | 3.60 |
DCC6C |
| SF9075 | 1800.00 | 20.00 | 2.20 |
DCC6C |
| SF9097 | 1817.50 | 25.00 | 2.30 |
DCC6C |
| SF9610 | 1817.50 | 25.00 | 2.20 |
DCC6C |
| SF9633 | 1827.50 | 45.00 | 2.40 |
DCC6C |
| SF9654 | 1832.50 | 55.00 | 3.30 |
DCC6C |
| SF9643 | 1832.50 | 60.00 | 2.50 |
DCC6C |
| SF9052 | 1840.00 | 20.00 | 2.20 |
DCC6C |
| SF9095 | 1840.00 | 20.00 | 2.20 |
DCC6C |
| SF9077 | 1842.50 | 75.00 | 3.00 |
DCC6C |
| SF9055 | 1860.00 | 20.00 | 2.20 |
DCC6C |
| SF9066 | 1865.00 | 30.00 | 2.50 |
DCC6C |
| SF9093 | 1890.00 | 20.00 | 2.10 |
DCC6C |
| SF9083 | 1900.00 | 40.00 | 1.80 |
DCC6C |
| SF9072 | 1950.00 | 60.00 | 1.90 |
DCC6C |
| SF9626 | 1950.00 | 60.00 | 2.60 |
DCC6C |
| SF9049 | 1955.00 | 30.00 | 2.00 |
DCC6C |
| SF9067 | 1960.00 | 60.00 | 2.00 |
DCC6C |
| SF9090 | 1965.00 | 50.00 | 2.60 |
DCC6C |
| SF9043 | 1970.00 | 30.00 | 2.10 |
DCC6C |
| SF9005 | 2017.50 | 15.00 | 3.40 |
DCC6C |
| SF9605 | 2017.50 | 15.00 | 2.10 |
DCC6C |
| SF9630 | 2132.50 | 45.00 | 2.70 |
DCC6C |
| SF9061 | 2140.00 | 60.00 | 1.80 |
DCC6C |
| SF9632 | 2140.00 | 60.00 | 2.70 |
DCC6C |
| SF9050 | 2145.00 | 30.00 | 2.70 |
DCC6C |
| SF9640 | 2313.50 | 27.00 | 2.30 |
DCC6C |
| SF9087 | 2345.00 | 50.00 | 2.30 |
DCC6C |
| SF9062 | 2515.00 | 30.00 | 2.50 |
DCC6C |
| SF9622 | 2555.00 | 40.00 | 2.70 |
DCC6C |
| SF9086 | 2595.00 | 40.00 | 3.00 |
DCC6C |
| SF9639 | 2605.00 | 60.00 | 2.80 |
DCC6C |
| SF9614 | 2655.00 | 40.00 | 3.00 |
DCC6C |
