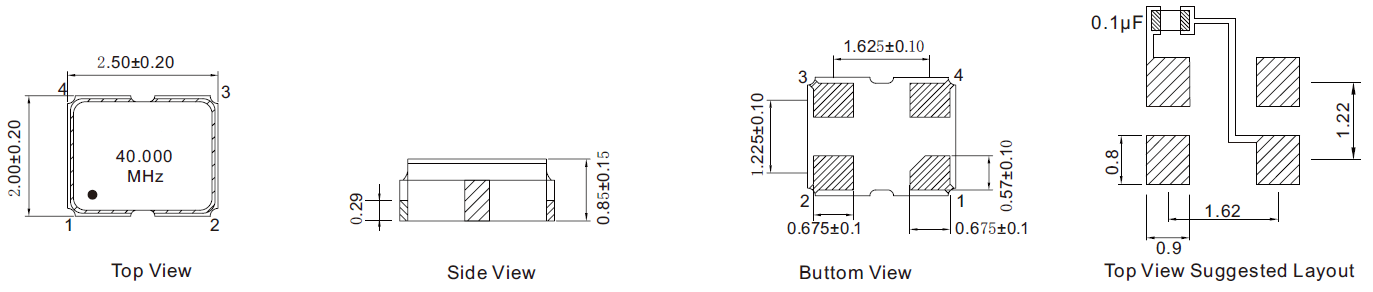

1. Ultra small size temperature compensated crystal oscillator (TCXO), 2.5 × two × 0.85mm
2. LVCMOS output, frequency range 10MHz~60MHz
3. Supports 3-state functionality
4. Low operating voltage 1.8V~3.3V
5. Low phase noise, ultra-high precision 2.0ppm
6. Compliant with RoHS green environmental certification, SGS certification, and Pb Free environmental requirements
7. Mainly used in products with precision requirements such as GPS, walkie talkies, RF wireless communication devices, Internet of Things (IoT), WIFI, Bluetooth, etc
|
Item / Type |
NTC22 (SMD 2520溫補晶振TCXO) | ||
|
Dimensions |
2.5×2.0×0.85 mm |
||
|
Output mode |
LVCMOS | ||
|
Output load |
15pF | ||
|
Output frequency range |
10MHz~60MHz |
||
|
Supply voltage |
1.8V ~ 3.3V |
||
|
Frequency stability |
Tolerance |
±2.0ppm max. |
|
|
Temperature |
±2.5ppm ~ ±10ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~ 85oC, or specify |
||
|
Supply consumption |
10mA max. |
||
|
Rise /Fall time |
5ms max. |
||
|
Voltage Voh (min.) /Vol (max.) |
90% Vdd min. /10% Vdd max. |
||
|
RMS phase jitter |
1ps max. |
||
|
Symmetry |
45% to 55% |
||
|
Start-up time |
5.0ms max. |
||
|
Storage temperature |
-40~ 85oC |
||
|
Phase noise @ Offset 1kHz |
-130dBc/Hz |
||
