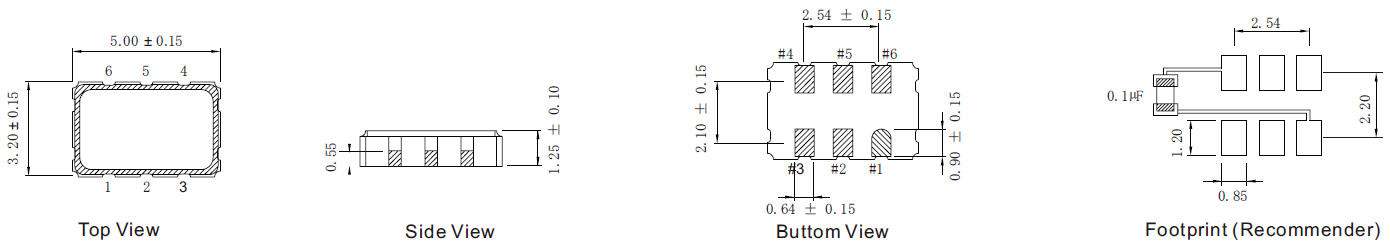

1. Ultra small SMD 5032 differential voltage controlled crystal oscillator with a package size of 5.0 × three point two × 1.25mm
2. LVDS signal output, frequency 10MHz~1500MHz
3. Working voltage of 2.5V/3.3V, ultra-low power consumption
4. Low phase jitter of 12kHz~20MHz is only 1pS
5. Supports 3-state functionality
6. Passed RoHS green environmental certification and meets Pb Free environmental requirements
7. Applied in industries such as HDTV, high-definition image transmission, jitter amplifiers, high-speed Ethernet, servers, VoIP, storage devices, etc
|
Item / Type |
NVCLV53 (SMD 5032 Voltage Controlled Crystal LVDS Output) |
|
Dimensions |
5.0×3.2×1.25 mm |
|
Output |
LVDS |
|
Output load |
100Ω |
|
Output frequency range |
10MHz~1500MHz |
|
Supply voltage |
2.5V / 3.3V |
|
Frequency tolerance |
±25ppm, ±50ppm |
|
Operating temperature |
-20~ 70oC, -40~ 85oC |
|
Supply current |
75mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
0.9V min. / 1.6V max. |
|
Rise time /Fall time |
1ns max. |
|
Start-up time |
10ms max. |
|
RMS phase jitter (12kHz~20MHz) |
1pS max. |
|
Phase noise (@1kHz) |
-95dBc/Hz@250MHz |
|
Storage temperature |
-55~ 125oC |
|
Absolute pulling range (APR) |
±50ppm min., or specify |
|
Control voltage range |
[email protected], [email protected] |
|
Linearity |
10% max. |
|
Input impedance |
1MΩ min. |
|
Modulation bandwidth (BW) |
10kHz min. |
