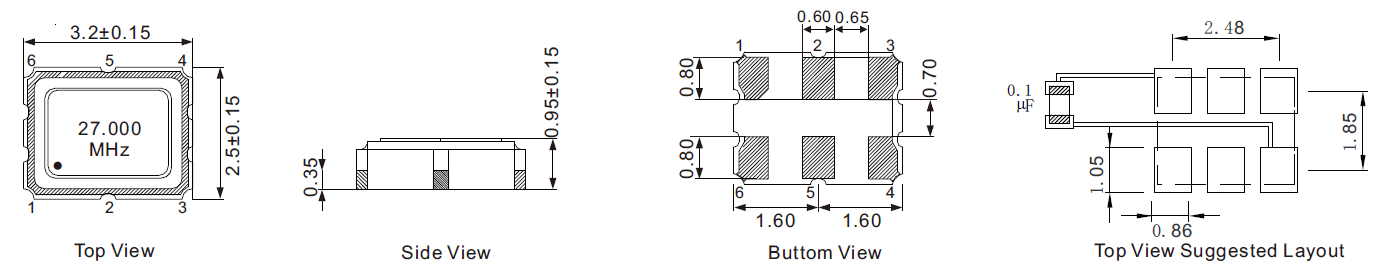

1. Ultra small size SMT voltage controlled crystal oscillator VCXO, size 3.2 × two point five × 0.9mm, 6-pin package
2. Voltage controlled crystal oscillator (VCXO)
3. CMOS output, frequency 10MHz~250MHz
4. Low operating voltage: 2.5V/3.3V
5. Compliant with RoHS
6. Low phase jitter: 0.8pS RMS from 12KHz to 20MHz
7. Three states available
8. Application scope: High speed Ethernet, fiber channel, HDTV, ATM, set-top box, WiMAX, server, SAS, SATA, etc
|
Item / Type |
NVC32 (SMD 3225 VCXO) |
|
Dimensions |
3.2×2.5×0.90 mm |
|
Output |
CMOS |
|
Output load |
15pF, or specify |
|
Output frequency range |
10MHz~250MHz |
|
Supply voltage |
2.5V / 3.3V |
|
Frequency tolerance |
±25ppm, ±50ppm |
|
Operating temperature |
-20~+70oC, -40~+85oC |
|
Supply current |
50mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
90% Vcc min. / 10% Vcc max. |
|
Rise time /Fall time |
5ns max. |
|
Start-up time |
2ms max. |
|
RMS phase jitter (12kHz~20MHz) |
1pS max. |
|
Phase noise (@1kHz) |
-107dBc/Hz |
|
Storage temperature |
-55~+125oC |
|
Absolute pulling range (APR) |
±50ppm min., or specify |
|
Control voltage range |
[email protected], [email protected] |
|
Linearity |
10% max. |
|
Input impedance |
1MΩ min. |
|
Modulation bandwidth (BW) |
10 kHz min. |
