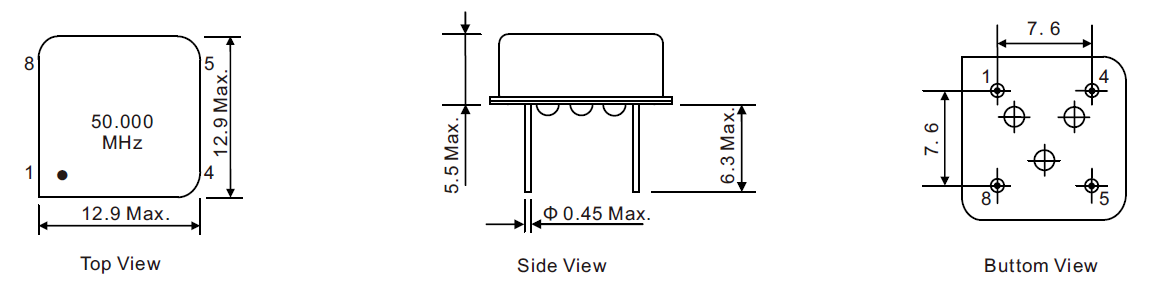

1. Using metal insert packaging, DIP-8 (half size) packaging, size 12.9 × twelve point nine × 5.5mm
2. Voltage controlled crystal oscillator (VCXO)
3. CMOS output, frequency range from 1 MHz to 220 MHz
4. Working voltage of 5V/3.3V
5. Compliant with RoHS
6. Low phase noise
7. Phase jitter less than 0.5pS
8. Applied to testing equipment, avionics equipment, electronic instruments, smart grids, inverters, etc
|
Item / Type |
NVCHS (DIP-8 Thru-hole VCXO) |
|
Dimensions |
12.9×12.9×5.5 mm |
|
Output |
CMOS |
|
Output load |
15pF, or specify |
|
Output frequency range |
1MHz~220MHz |
|
Supply voltage |
3.3V / 5.0V |
|
Frequency tolerance |
±25 ppm, ±50 ppm, ±100 ppm |
|
Operating temperature |
-20~ 70oC, -40~ 85oC |
|
Supply current |
45mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
90% Vcc min. / 10% Vcc max. |
|
Rise time /Fall time |
6ns max. |
|
Start-up time |
10ms max. |
|
RMS phase jitter (12kHz~20MHz) |
1pS max. |
|
Phase noise (@1kHz) |
-120dBc/Hz |
|
Storage temperature |
-55~ 125oC |
|
Absolute pulling range (APR) |
±80ppm min., or specify |
|
Control voltage range |
[email protected], [email protected] |
|
Linearity |
10% max. |
|
Input impedance |
1MΩ min. |
|
Modulation bandwidth (BW) |
10 kHz min. |
