Type /Item | NOC1409...6P 恒溫晶振 (SMD OCXO) | Note | |
Output Frequency | 5MHz~40MHz | ||
Waveform | Rectangular/HCMOS | ||
'1' Level |
Rectangular |
Vcc×0.9 min. | |
'0' Level | Vcc×0.1 max. | ||
Duty Cycle | 45%~55% | ||
Load |
15pF | ||
Spurious | -60dBc max. | ||
Frequency Stability | Tolerance | ±30ppb | |
vs. Temperature |
±5ppb~±50ppb |
||
vs. Supply voltage |
±5ppb max. |
||
vs. Load |
±10ppb max. |
||
vs. Warm-up |
±0.1ppm max. |
||
vs. aging | - | ||
Daily | ±2.0ppb max. | ||
Yearly |
±0.4ppm max. |
||
10 Years |
±2.0ppm max. |
||
Phase Noise | @ 10Hz | -92dBc/Hz | |
@ 100Hz |
-120dBc/Hz |
||
@ 1KHz |
-140dBc/Hz |
||
@ 10KHz |
-150dBc/Hz |
||
Electrical Frequency Adjustment | Range |
±5ppm max. |
|
Control | 0~3.3V, 0~5.0V |
5.0V input available |
|
Slope | Positive | ||
Input Impedance | 100KΩ min. | ||
Input Power | Voltage | 3.3V | 5.0V input available |
Current | 600mA max. | ||
Steady state | 0.6W max. | ||
Operating Temperature | -20~+70℃, -40~+85℃ | ||
Storage Temperature |
-40~+85℃ |
||

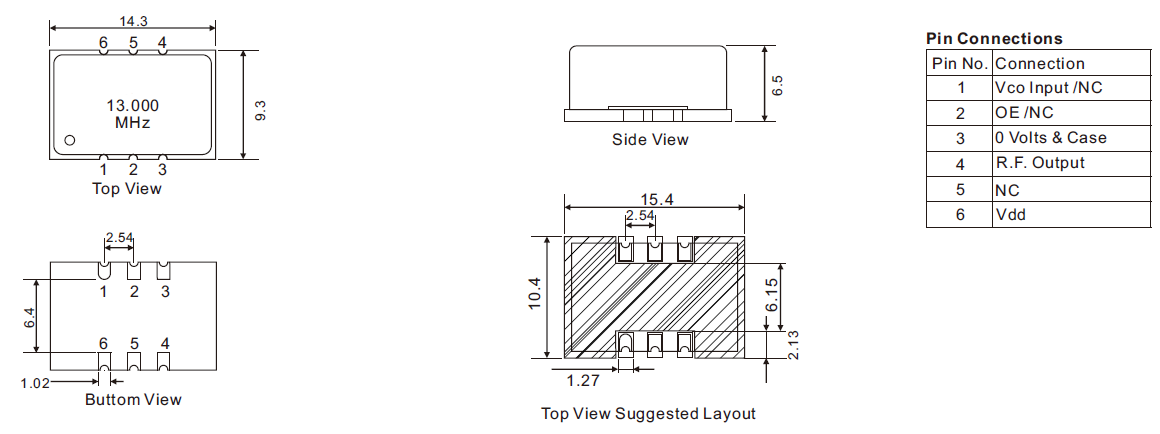

Dimensions (L×W×H)(mm) | 14.5×9.6×6.5 |
