1.全尺寸插件溫補晶體振蕩器TCXO,20.4×12.8×7.8mm,全金屬封裝
2. VC-TCXO可選
3. 超高精度±0.05ppm~±2.0ppm
4. Clipped sinewave輸出,頻率1.25MHz~52MHz
5. 工作電壓2.5V~5.0V可選
6. 超低相噪、高精度,主要應用于測試儀器、無線通信、軍工通信、航天航海、工業控制等對精度有特別要求的產品行業上
|
Item / Type |
NVTFS (全尺寸插件溫補晶振TCXO/VCTCXO) | ||
|

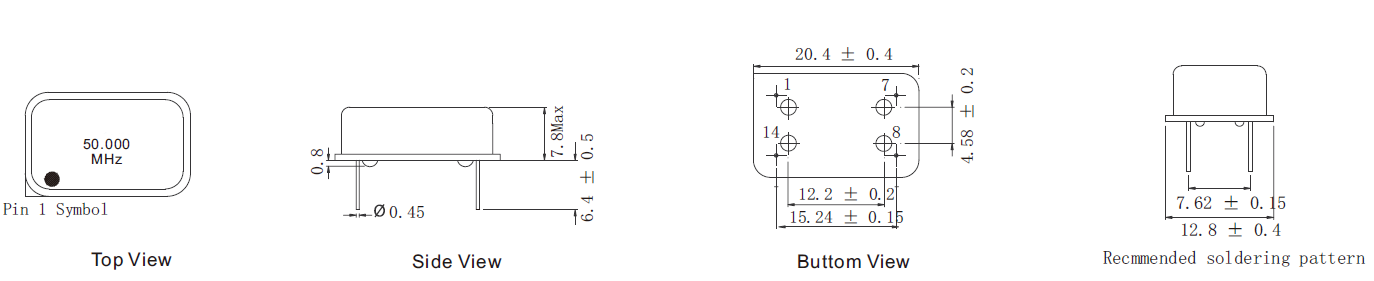

Dimensions |
20.4×12.8×7.8 mm |
||
|
Output level |
0.8Vp-p min. (Clipped Sinewave) |
||
|
Output load |
10KΩ // 10pF |
||
|
Output frequency range |
1.25MHz~52MHz |
||
|
Supply voltage |
2.5V ~ 5.0V |
||
|
Frequency stability |
Tolerance |
±2.0ppm max. |
|
|
Temperature |
±0.05ppm ~ ±2.0ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~+85oC, or specify |
||
|
Supply consumption |
4.0 mA max. |
||
|
VC-TCXO |
Frequency control range |
±8ppm to ±16ppm |
|
|
Control voltage range |
0.5~4.5V@5V, [email protected], [email protected], [email protected] |
||
|
Input impedance |
100 kΩ |
||
|
Symmetry |
40% to 60% |
||
|
Start-up time |
2.0ms max. |
||
|
Storage temperature |
-40~+85oC |
||
|
Phase noise @ Offset 1kHz |
-135dBc/Hz |
||
