1. Ultra compact, thin and lightweight tuning fork crystal 32.768kHz, package size 1.6 × one × 0.5mm
2. Excellent heat resistance and environmental characteristics
3. Excellent electrical performance, making it the best choice for mobile communication, office automation, and audiovisual applications
4. Meets RoHS standards and does not contain lead
5. Adopting a bundled scroll packaging, it is suitable for mounting and reflow soldering of SMT machines
6. Main applications: small communication equipment, clock generators, watches and other products
| Specification and model | N11N series (SMD 1610 SMD 32.768kHz crystal oscillator) |
| Nominal frequency | 32.768kHz |
| Room temperature frequency difference | ± 20ppm, or customized |
| Load capacitance |
6pF, 7pF, 9pF, 12.5pF |
| direct capacitance | 1.0pF typical |
| Resonant resistor | 90K Ω max |
| Parabolic Coefficients |
± 0.04 × ten-6/° C2Max |
| Drive power | zero point five μ W max |
| Conversion temperature | 25 ℃± 5 ℃ |
| insulation resistance | 500MΩ max |
| working temperature | -40℃~85℃ |
| Storage temperature |
-55 ℃~125 ℃℃ |
| Aging rate (@ 25℃） |
Highest ± 3ppm/year |

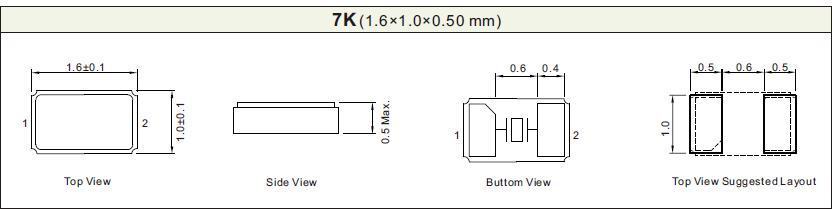

| Product size (L × W × H) |
one point six × one × 0.5 mm |
| Packaging quantity | 3000pcs/ volume |
