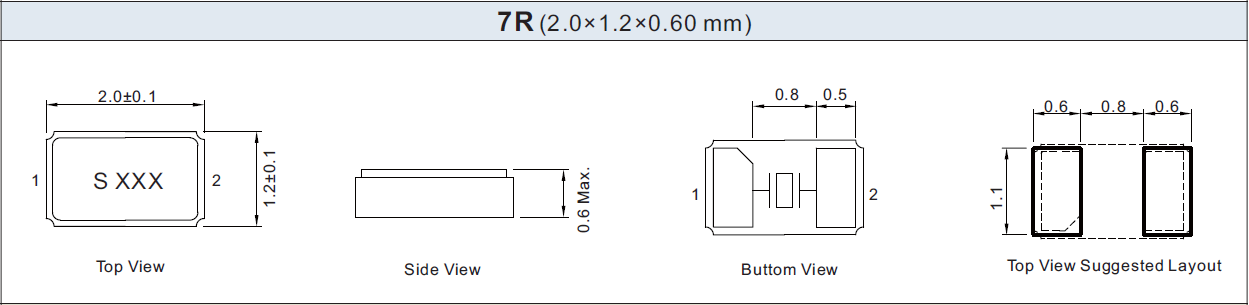

1. Ultra small size 2.0 × one point two × 32.768kHz crystal oscillator in 0.6mm package
2. High reliability environmental performance
3. High frequency stability and high precision
4.2 Pad SMT metal packaging
5. Ribbon packaging, suitable for automatic installation and reflow soldering
6. Green and environmentally friendly products, certified by RoHS and Pb Free
7. SMD 2012 SMT 32.768kHz crystal oscillator is mainly used in electronic products such as mobile phones, laptops, communication, wireless communication, GPS, audio systems, digital devices, smart homes, the Internet of Things, gaming consoles, computers and computer peripherals, digital products, walkthroughs, consumer electronics, etc
| model | N12M (SMD 2012 SMD 32.768kHz crystal oscillator) |
| Nominal frequency | 32.768kHz |
| Frequency accuracy (25 ℃) | ± 20ppm, or customized |
| working temperature | -40 ℃~85 ℃ |
| direct capacitance | 1.0pF typical |
| Dynamic capacitance | 6.4fF typical |
| insulation resistance | 500M Ω min |
| Drive power | zero point five μ W max |
| Load capacitance | 12.5pF, or customized |
| Conversion temperature | 25 ℃± 5 ℃ |
| Parabolic Coefficients | (-0.03 ± 0.01) * 10-6/℃2 |
| Aging rate (25 ℃) |
± 3ppm in the first year |
| Storage temperature | -55 ℃~125 ℃ |
| Resonant resistor | 90K Ω max |
