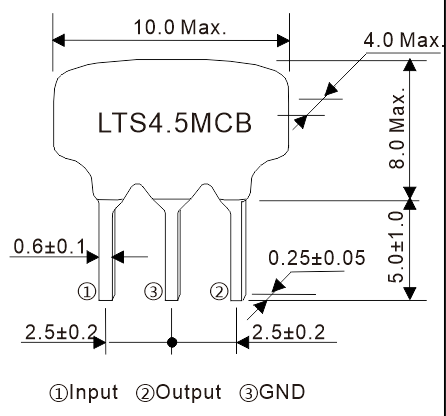

The maximum size of LTS MCB/MDB/MEB is (10) × 8.0 ± 4.0mm)
2. The maximum insertion loss is 6dB
3. The minimum stray attenuation (0-Fn) is 30dB, which exhibits excellent stray characteristics in the video signal frequency band
4. nominal center frequency (Fn), available at 2.3-6.5MHz
5. Compliant with RoHS environmental certification
6. Applied to consumer electronics products such as televisions and video recorders
| model |
centre frequency(MHz) |
3dB bandwidth(KHz)(min.) |
20dB bandwidth(KHz)(max.) |
insertion loss(dB)(max.) |
bandpass attenuation(0~Fn)(dB)(min.) |
Input/Output Impedance |
|
LTS2.3MEB |
2.300 | Fn±70 | 800 | 6.0 | 25 | 1000Ω |
|
LTS2.8MEB |
2.800 |
Fn±70 |
800 | 6.0 | 25 |
1000Ω |
|
LTS3.2MEB |
3.200 |
Fn±70 |
800 | 6.0 | 25 |
1000Ω |
|
LTS3.8MEB |
3.800 |
Fn±70 |
800 | 6.0 | 25 |
1000Ω |
|
LTS4.5MEB |
4.500 |
Fn±125 |
800 | 6.0 | 25 |
1000Ω |
|
LTS4.5MCB |
4.500 |
Fn±60 |
600 | 6.0 | 30 |
1000Ω |
|
LTS4.5MDB |
4.500 |
Fn±70 |
750 |
6.0 |
30 |
1000Ω |
|
LTS5.5MCB |
5.500 |
Fn±60 |
600 |
6.0 |
30 |
600Ω |
|
LTS5.5MDB |
5.500 |
Fn±80 |
750 |
6.0 |
30 |
600Ω |
|
LTS6.0MCB |
6.000 |
Fn±60 |
600 |
6.0 |
30 |
470Ω |
|
LTS6.0MDB |
6.000 |
Fn±80 |
750 |
6.0 |
30 |
470Ω |
|
LTS6.5MCB |
6.500 |
Fn±70 |
650 |
6.0 |
30 |
470Ω |
|
LTS6.5MDB |
6.500 |
Fn±80 |
800 |
6.0 |
30 |
470Ω |
