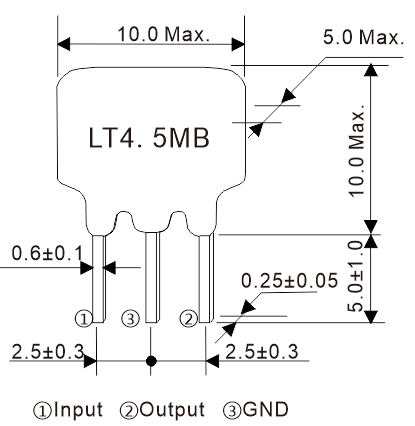

1. Adopting a 3-pin plug-in package, with an external size of 10.0 * 10.0 * 5.0mm
2. Has excellent spurious suppression characteristics in the video signal frequency band
3. With 4-channel bandwidth variation, it can meet various requirements
4. It has the function of no frequency adjustment, high performance, durability, and high selectivity
5. Compliant with RoHS certification
| model |
Center frequency (MHz) |
3dB bandwidth (KHz) (min.) | 20dB bandwidth (KHz) (maximum.) | Insertion loss (dB) (max) |
Stop band attenuation (9-12MHz) (dB) (min.) |
Input/output impedance |
| LT4.5MB | 4.500 | ≥ 60 (± 105) | ≤ 530 (420) | ≤ 6 (4) | ≥ 20 (4.5MHz) | 1000 Ω |
| LT5.5MB |
5.500 |
≥ 75 (± 120) |
≤ 550 (470） |
≤ 6 (3） |
≥ 25 (5.5 ± 1.0MHz) |
600 Ω |
| LT6.0MB |
6.000 |
≥ 80 (± 130) |
≤ 600 (500） |
≤ 6 (2.5） |
≥ 25 (6.0± 1.0MHz) |
470 Ω |
| LT6.5MB |
6.500 |
≥80 (± 130） |
≤ 630 (530） |
≤ 6 (2.5） |
≥ 25 (6.5± 1.0MHz) |
470Ω |
