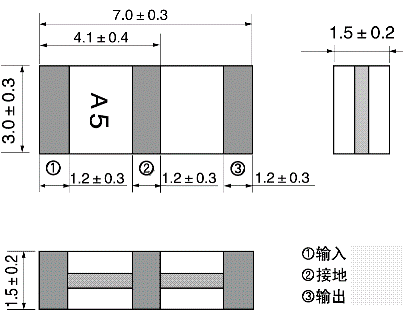

1. LTCA/LTCV 10.7MHz ceramic filter adopts SMT packaging, 7.0 * 3.0 * 1.5mm
2. Applied to FM receivers, it has excellent mechanical strength and can be installed automatically
3. It has low insertion loss, low spurious attenuation, input/output impedance of 330 Ω, and various bandwidths available
4. Compliant with RoHS directives
5. Product customization services can be provided according to customer requirements
| model | 3dB bandwidth(KHz)(min.) | 20dB bandwidth(KHz)(max.) |
insertion loss(0-Fn)(dB)(max.) |
bandpass attenuation(9-12MHz)(dB) |
|
LTCA10.7MJ |
150±40 |
430 | ≤10 | 30 |
|
LTCV10.7MJ |
150±40 |
380 | 5.5±2.0 | 35 |
|
LTCA10.7MS3 |
180±40 |
520 |
≤6.0 |
30 |
|
LTCV10.7MS3 |
180±40 |
470 |
4.0±2.0 |
35 |
|
LTCA10.7MS2 |
230±40 |
570 |
≤6.0 |
30 |
|
LTCV10.7MS2 |
230±40 |
510 |
3.5±2.0 |
35 |
|
LTCA10.7MA5 |
280±40 |
650 |
≤6.0 |
30 |
|
LTCV10.7MA5 |
280±40 |
590 |
3.0±2.0 |
35 |
|
LTCV10.7MA20 |
330±40 |
700 |
3.0±2.0 |
30 |
|
LTCV10.7MA19 |
Fn±175 min. | 950 |
3.0±2.0 |
20(5-15MHz) |
| Input/Output Impedance: 330Ω(A19: 470Ω) | ||||
