1. Various bandwidths are available Choose the appropriate type based on the required selectivity

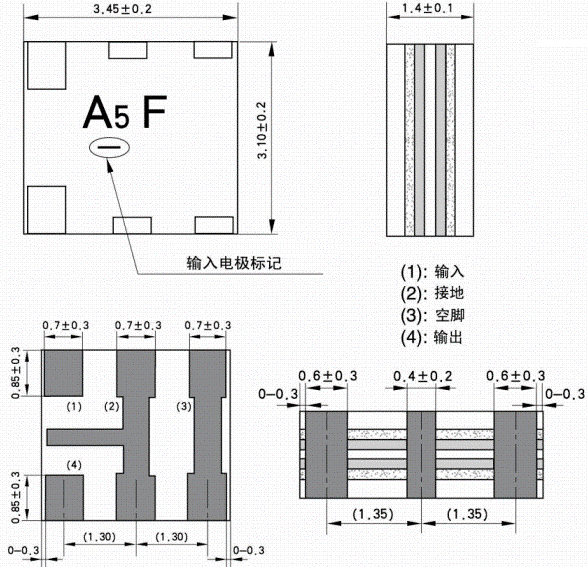

2. Ultra thin with a maximum thickness of only 1.4 millimeters. The thickness is small and the installation area is small, allowing for flexible PCB design
3. Working temperature range: -20 to 80 ° C
4. Storage temperature range: -40 to 85 ° C
5. It can be automatically installed through a tape knitting machine
| model | 3dB bandwidth (KHz) (min.) | 20dB bandwidth (KHz) (maximum.) |
Insertion loss (0-Fn) (dB) (max.) |
Stop band attenuation (9-12MHz) (dB) |
| LTCS10.7MS3 |
180 ± 40 |
470 |
4.5 ± 2.0 |
30 |
|
LTCS10.7MS2 |
230 ± 50 |
510 |
3.5 ± 2.0 |
30 |
|
LTCS10.7MA5 |
280 ± 50 |
590 |
3.0 ± 2.0 |
30 |
|
LTCS10.7MA20 |
330 ± 50 |
700 |
3.0 ± 2.0 |
30 |
|
Input/output impedance: 330 Ω |
||||
