1. ZTACP/ZTTCP series ceramic crystal oscillators with high cost-effectiveness
2. Can replace Murata brand MURATA ceramic crystal oscillator
3. Frequency range: 2.000MHz~12.000MHz

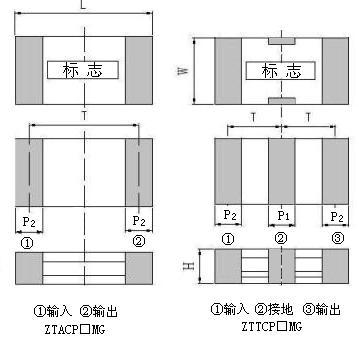

4. Appearance dimensions 6.0 × three × 1.6mm, packaged with 2 or 3 pins
5. Characteristics such as high precision, high reliability, heat resistance and vibration resistance
6. Applied to security monitoring, toys, drones, small appliances, radios, and other products
| model | Frequency range (MHz) | Frequency accuracy (%) | Temperature stability (-25~85 ℃) (%) | Working temperature (℃) | Aging rate (10 years) (%) |
| ZTACP□MG | 2.00-2.99MHz | ± 0.5 |
± 0.2 |
-40~125 |
± 0.1 |
| ZTACP□MG |
3.00-3.49MHz |
± 0.5 |
± 02 |
-40~125 |
± 0.1 |
|
ZTACP□MG |
3.5-12MHz |
± 0.5 |
± 0.2 |
-40~125 |
± 0.1 |
|
ZTTCP□MG |
2.00-2.99MHz |
± 0.5 |
± 0.2 |
-40~125 |
± 0.1 |
|
ZTTCP□MG |
3.00-3.49MHz |
± 0.5 |
± 0.2 |
-40~125 |
± 0.1 |
|
ZTTCP□MG |
3.5-12MHz |
± 0.5 |
± 0.2 |
-40~125 |
± 0.1 |
