1. ZTACW/ZTTCW series ceramic crystal oscillators with high cost-effectiveness
2. Can replace Murata brand MURATA ceramic crystal oscillator
3. High frequency output range: 20.000MHz~60.000MHz

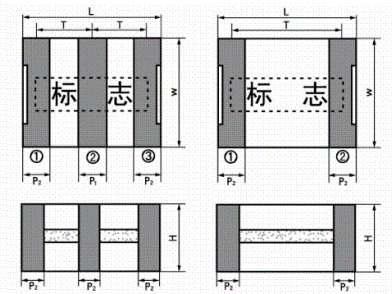

4. Appearance dimensions 2.5 × two × 1.2mm, packaged with 2 or 3 pins
5. Characteristics such as high precision, high reliability, heat resistance and vibration resistance
6. Applied to security monitoring, toys, consumer electronics, industrial control, automotive electronics, drones, small appliances, radios and other products
| model | Frequency range (MHz) | Frequency accuracy (%) | Temperature stability (-25~85 ℃) (%) | Working temperature (℃) | Aging rate (10 years) (%) |
| ZTACW□MX | 20.000~60.000MHz | ± 0.5 |
± 0.3 |
-25~85 |
± 0.3 |
| ZTTCW□MX |
20.000~60.000MHz |
± 0.5 |
± 0.3 |
-25~85 |
± 0.3 |
