1. Small size, SMT metal packaging, size: 5.0 × three point two × 0.9mm
2. Ultra high precision and frequency stability.
3. Excellent heat resistance and environmental characteristics, reducing electromagnetic interference.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. Green and environmentally friendly products, certified by RoHS and Pb Free.
6. Wide frequency output range of 8MHz~125MHz.
7. The SMD 5032 chip mounted crystal oscillator is mainly used in wireless communication, network communication, DVC, DSC, PDA, computers and computer peripherals, Internet of Things, automotive electronics, security, GPS and other electronic products.
| model | N53 (SMD 5032 chip mounted crystal oscillator) |
| frequency range | 8MHz~125MHz |
| Frequency tolerance (@ 25 ℃) | ± 10ppm, ± 20ppm,± 30ppmOr customized |
| Frequency accuracy (operating temperature) |
± 10ppm, ± 20ppm, ± 30ppm or customized |
| working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized |
| direct capacitance | 3pF max |
| Drive power |
ten μ W typical value (200 μ W max) |
| Load capacitance | 10pF, 12pF, 16pF, or customized |
| Resonant resistor | 80 Ω max (8MHz~12MHz) |
| 50 Ω max (12MHz~45MHz) | |
|
100 Ω max (45MHz~125MHz) |
|
| Aging rate |
± 3ppm/year max |
| Storage temperature | -55 ℃~125 ℃ |

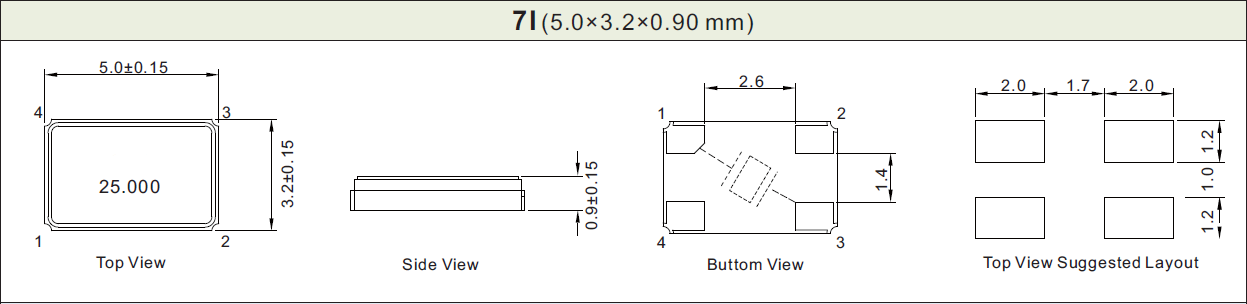

| Product size (L × W × H) (mm) | five × three point two × zero point nine zero |
