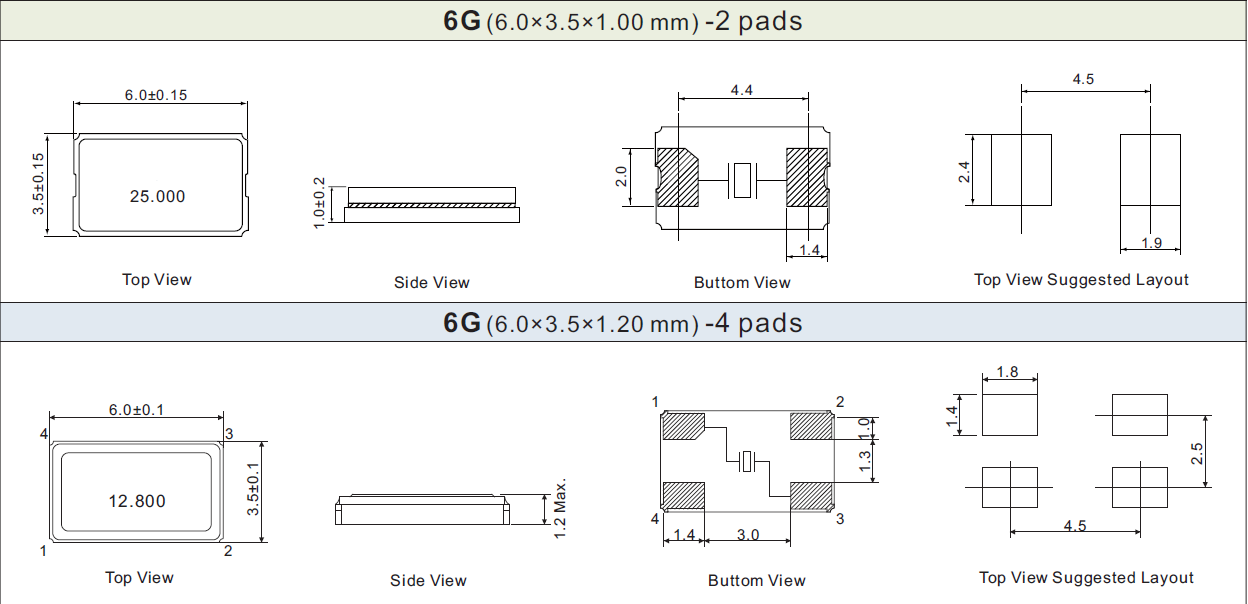

1. Small size, SMT metal packaging, size: 6.0 × three point five × 1.0mm
2. Ultra high precision and frequency stability.
3. Excellent heat resistance and environmental characteristics, reducing electromagnetic interference.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. Green and environmentally friendly products, certified by RoHS and Pb Free.
6. 4-pad packaging and 2-pad packaging
7. Wide frequency output range of 8MHz~100MHz.
8. The SMD 6035 chip mounted crystal oscillator is mainly used in electronic products such as mobile phones, wireless communication, computers and computer peripherals, smart homes, automotive electronics, security, WLAN, DSC, networks, etc.
| model | N63 (SMD 6035 crystal oscillator patch) |
| frequency range | 8MHz~100MHz |
| Frequency tolerance (@ 25 ℃) | ± 10ppm, ± 20ppm, ± 30ppm or customized |
| Frequency accuracy (operating temperature) |
± 10ppm, ± 20ppm, ± 30ppm or customized |
| working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized |
| direct capacitance | 3pF max |
| Drive power |
ten μ W typical value (200 μ W max |
| Load capacitance | 10pF, 12pF, 16pF, or customized |
| Resonant resistor | 100 ΩMax(8MHz~12MHz) |
| 70 ΩMax(10MHz~100MHz) | |
| Aging rate | ± 3ppm/yearMax |
| Storage temperature | -55 ℃~125 ℃ |
| Product size (L × W × H) (mm) | six × three point five × one |
