1. Wide frequency range: 3MHz~50MHz
2. Good impact resistance
3. Small volume, using cylindrical quartz crystal units
4. Low power consumption
5. Reliable frequency stability
6. Application areas: Bluetooth, security, Internet of Things, wireless communication, consumer electronics, personal computer peripherals, etc
7. Passed lead-free certification
|
model |
N26/N38/N39/N310 series cylindrical quartz crystal oscillator |
||
|

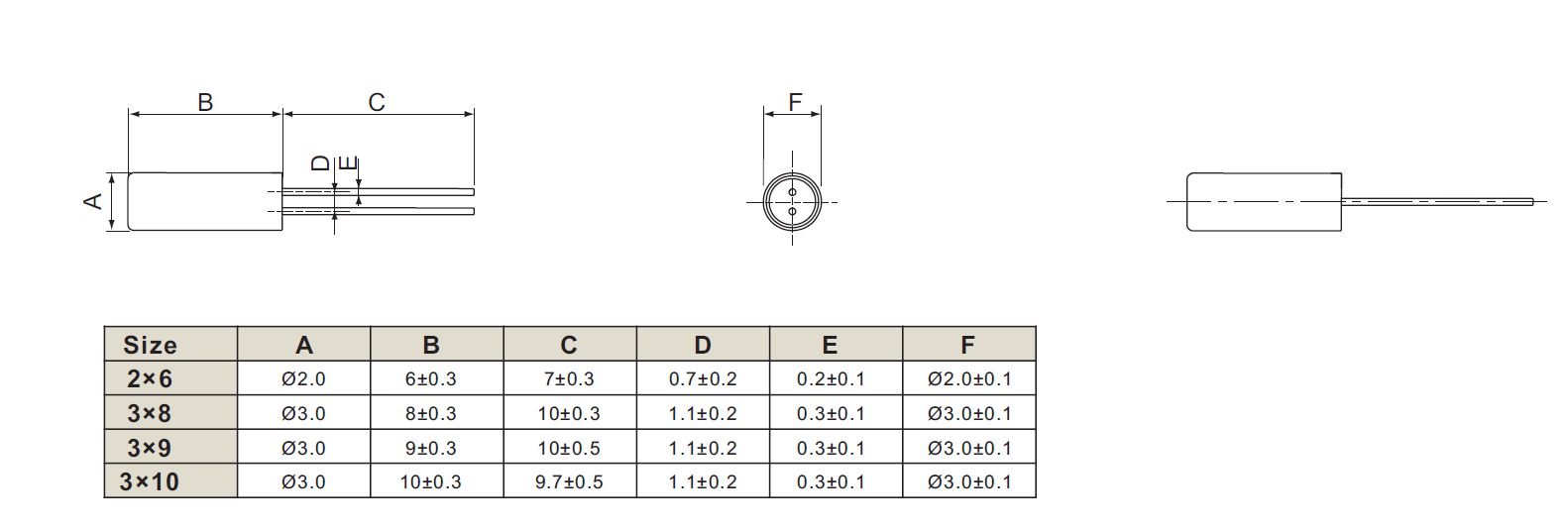

Product size |
three × 9/3 × ten | two × 6/3 × eight | |
|
frequency range |
3.579MHz~4.000MHz | 4.000MHz~50.000MHz | |
|
Frequency tolerance @ 25 ℃ |
± 10~± 30ppm, or customized |
||
|
Frequency accuracy (operating temperature) |
± 10~± 30ppm, or customized |
||
|
working temperature |
-20℃~70℃, -40℃~85℃, or customized |
||
|
direct capacitance |
Typical value of 5.0pF |
||
|
Drive power |
one hundred μ W typical value（five hundred μ W max） |
||
|
Load capacitance |
8pF~32pF, or customized |
||
|
Resonant resistance (ESR) |
180 Ω maximum. Fund | ||
|
150 Ω maximum. Fund |
|||
|
120 Ω maximum. Fund |
|||
|
100 Ω maximum. Fund |
|||
|
80 Ω maximum. Fund |
|||
|
60 Ω maximum. Fund |
|||
|
40 Ω maximum. Fund |
|||
|
80 Ω maximum. 3rd Overtone |
|||
| Storage temperature |
-40~85℃ |
||
| Aging rate | ± 3ppm/year max | ||
