1. Resistance welding machine type plug-in quartz crystal oscillator
2. Wide frequency range: 3MHz~200MHz
3. A large number of standard frequencies
4. Excellent aging characteristics
5. Uniform frequency tuning range and modulation sensitivity
6. Applications: TV, set-top box, LCDM, communication, mobile radio communication, cable modem, etc
7. Compliant with RoHS standards/lead-free

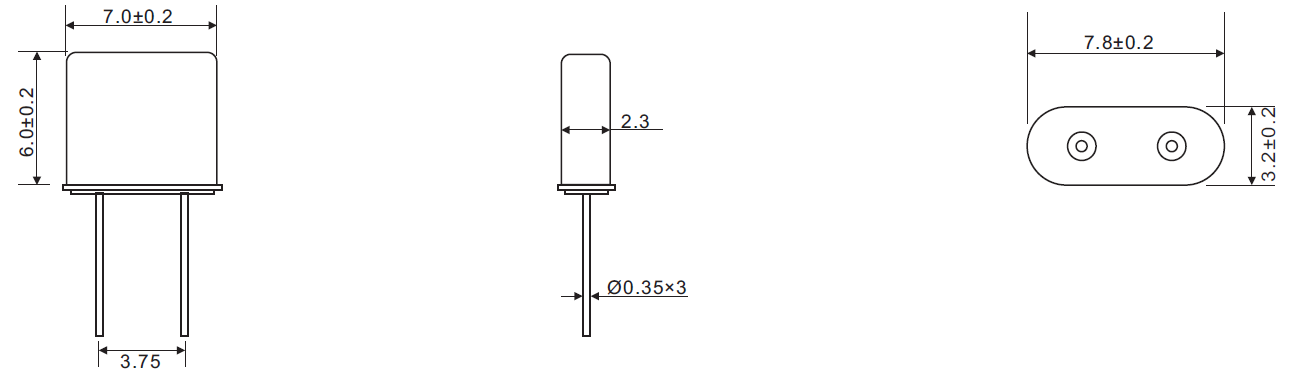

8. Product size: 7.8 × three point two × 6.0 mm
|
model |
NUM-5 (UM-5 quartz crystal oscillator) | |
|
frequency range |
3MHz~200MHz | |
|
Frequency tolerance @ 25 ℃ |
± 10ppm~± 50ppm, or customized | |
|
Frequency stability (operating temperature) |
± 10ppm~± 50ppm, or customized |
|
|
working temperature |
-20 ℃~70 ℃, -40 ℃~85 ℃, or customized | |
|
direct capacitance |
7pF max | |
|
Drive power |
one hundred μ W typical value (500 μ W max | |
|
Load capacitance |
8-32pF, or customized | |
|
Resonant resistor |
3MHz~5MHz | 1000 Ω max Fund |
| 5MHz~6MHz |
90 Ω max Fund |
|
|
6MHz~7MHz |
80 Ω max Fund |
|
|
7MHz~10MHz |
60 Ω MaxFund |
|
|
10MHz~16MHz |
50 Ω MaxFund |
|
|
16MHz~24MHz |
40 Ω MaxFund |
|
|
24MHz~35MHz |
40 Ω Max3rd Overtone |
|
|
35MHz~100MHz |
80 Ω Max3rd Overtone |
|
|
100MHz~200MHz |
100 Ω Max5th/7th Overtone |
|
|
Storage temperature |
-55 ℃~125 ℃ |
|
|
Aging rate |
± 3ppm/year Max | |
|
Product size |
seven point eight × three point two × six | |
