1. Single port resonator
2. Ceramic packaging for surface mount technology (SMT)

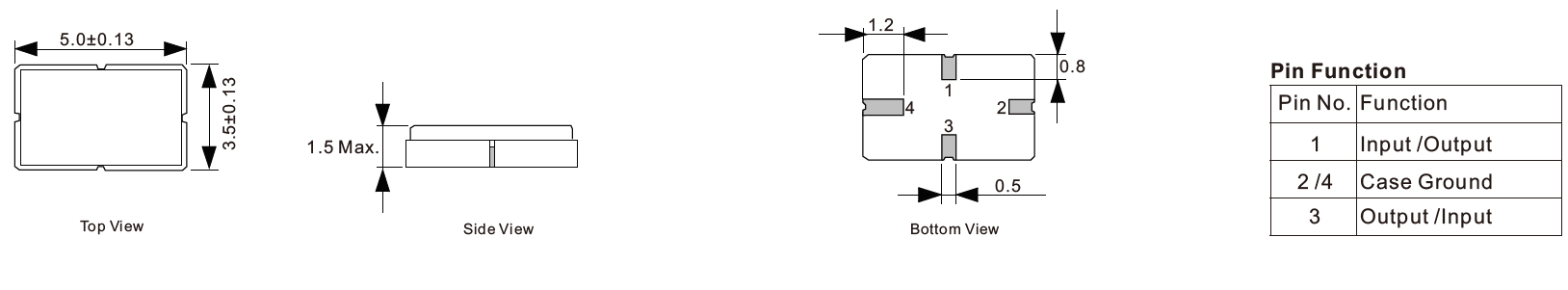

3. Package size 5.0 × three point five × 1.5mm
4. Electrostatic Sensitive Devices (ESD)
6. Encapsulation code QCC4A
7. Low insertion loss
8. Compliant with RoHS standards/lead-free
9. Frequency range from 299MHz to 868MHz
10. Application: Automotive electronics, remote control, alarm. Security, Internet of Things, smart cities, and more
| Part Number | Center Frequency (MHz) | Frequency Tolerance | Insertion Loss (dB) max. | Package Code |
| R315 | 315.000 | ±30KHz / ±75KHz | 1.2 | QCC4A |
| R318 | 318.000 |
±30KHz / ±75KHz |
1.2 |
QCC4A |
| R346.8 | 346.800 |
±30KHz / ±75KHz |
1.2 |
QCC4A |
| R370 | 370.000 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R423.22 | 423.220 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R433.42 | 433.420 |
±30KHz / ±75KHz |
1.1 |
QCC4A |
| R433 | 433.920 |
±30KHz / ±75KHz |
1.3 | QCC4A |
| R434.42 | 434.420 |
±30KHz / ±75KHz |
1.4 |
QCC4A |
| R868.35 | 868.350 |
±75KHz / ±150KHz |
1.0 |
QCC4A |
