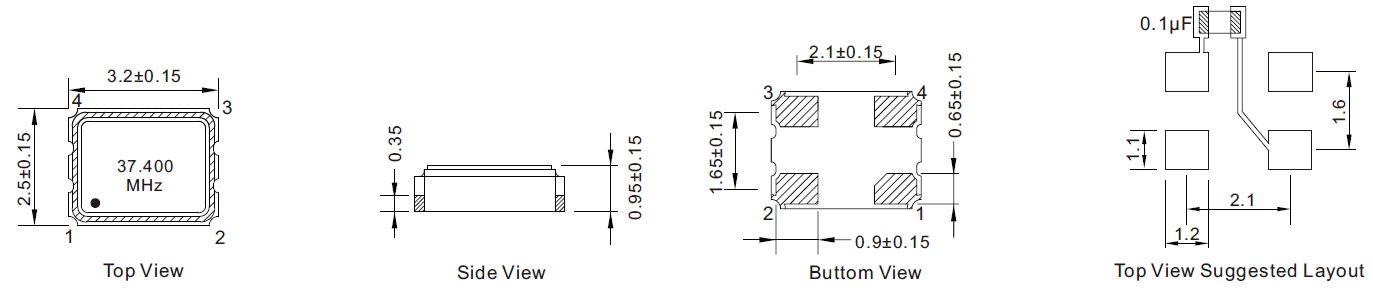

1. Micro size TCXO (temperature compensated crystal oscillator), size 3.2 × two point five × 1.0mm.
2. Temperature frequency difference: ± 2.5ppm~± 10ppm.
3. Working temperature: -30~85 ℃.
4. Reel ribbon packaging, can be used for automatic installation and reflow soldering.
5. High frequency output range: 10MHz~60MHz
6. Working voltage: 1.8V~3.3V.
7. Green and environmentally friendly products, certified by RoHS and Pb Free.
8. The SMD 3225 TCXO is mainly used in mobile wireless communication (CDMA, WCDMA, TD-SCDMA, GSM, LTE, WiMAX, etc.), wearable smart devices, network communication, WiLAN, gaming devices, camera modules, wireless communication, smart home, Internet of Things, GPS, GPRS, Bluetooth, automotive electronics, consumer electronics and other electronic products and applications.
|
Item / Type |
NTC32 (SMD 3225 Temperature Compensated Crystal TCXO) | ||
|
Dimensions |
3.2×2.5×1.0 mm |
||
|
Output mode |
LVCMOS | ||
|
Output load |
15pF | ||
|
Output frequency range |
10MHz~60MHz |
||
|
Supply voltage |
1.8V ~ 3.3V |
||
|
Frequency stability |
Tolerance |
±2.0ppm max. |
|
|
Temperature |
±2.5ppm ~ ±10ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~ 85oC, or specify |
||
|
Supply consumption |
10mA max. |
||
|
Rise /Fall time |
5ms max. |
||
|
Voltage Voh (min.) /Vol (max.) |
90% Vdd min. /10% Vdd max. |
||
|
RMS phase jitter |
1ps max. |
||
|
Symmetry |
45% to 55% |
||
|
Start-up time |
5.0ms max. |
||
|
Storage temperature |
-40~ 85oC |
||
|
Phase noise @ Offset 1kHz |
-130dBc/Hz |
||
