1. SMD 5032 Temperature Compensated Crystal Oscillator TCXO, 5.0, SMD Small Package × three point two × 1.5mm
2. VC-TCXO optional
3. Ultra high precision ± 0.05ppm~± 2.0ppm
4. Clipped sine wave output, frequency 10MHz~60MHz
5. Working voltage 1.8V~5.0V optional
6. Ultra low phase noise and high precision, mainly used in product industries with special precision requirements such as testing instruments, wireless communication, military communication, aerospace and navigation, industrial control, etc
|
Item / Type |
NVT53 (SMD 5032 Temperature Compensated Crystal TCXO/VCTCXO) | ||
|

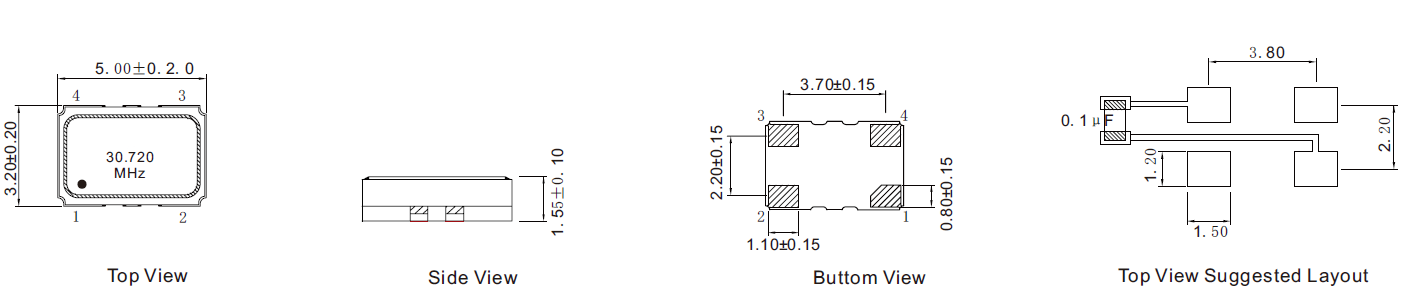

Dimensions |
5.0×3.2×1.50 mm |
||
|
Output level |
0.8Vp-p min. (Clipped Sinewave) |
||
|
Output load |
10KΩ // 10pF |
||
|
Output frequency range |
10MHz~60MHz |
||
|
Supply voltage |
1.8V ~ 5.0V |
||
|
Frequency stability |
Tolerance |
±2.0ppm max. |
|
|
Temperature |
±0.05ppm ~ ±2.0ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~+85oC, or specify |
||
|
Supply consumption |
4.0 mA max. |
||
|
VC-TCXO |
Frequency control range |
±8ppm to ±16ppm |
|
|
Control voltage range |
0.5~4.5V@5V, [email protected], [email protected], [email protected] |
||
|
Input impedance |
100 kΩ |
||
|
Symmetry |
45% to 55% |
||
|
Start-up time |
2.0ms max. |
||
|
Storage temperature |
-40~+85oC |
||
|
Phase noise @ Offset 1kHz |
-145dBc/Hz |
||
