1. Small SMD package temperature compensated crystal oscillator TCXO, size 14.5 × nine point six × 6.5 mm, metal cover
2. Temperature compensated crystal oscillator (TCXO)
3. Low phase noise: -141dBc/Hz @ 1KHz
4. Adopting a third layer structure with ultra-high stability
5. Working voltage: 3.3V or 5.0V
6. Compliant with RoHS
7. CMOS output, frequency range from 40MHz to 125MHz
8. Application scope: time synchronization, microwave communication, testing and measurement, telecommunications systems, satellite communication, etc.
|
Item / Type |
NVT1490 (SMD 1490 Temperature Compensated Crystal TCXO) | ||
|

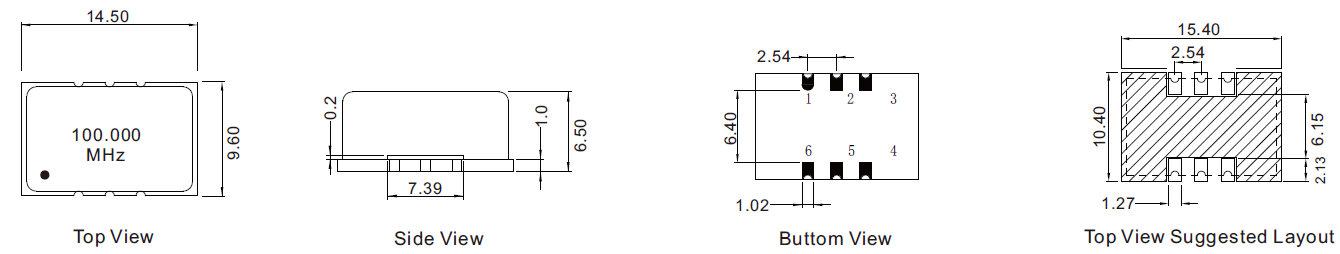

Dimensions |
14.5×9.6×6.5mm |
||
|
Output level |
LVCMOS |
||
|
Output load |
15pF | ||
|
Output frequency range |
40MHz ~ 125MHz |
||
|
Supply voltage |
3.3V/5.0V |
||
|
Frequency stability |
Tolerance |
±1ppm max. |
|
|
Temperature |
±4.6ppm max. |
||
|
Supply voltage |
±1ppm max. |
||
|
Load coefficient |
±1ppm max. |
||
|
Operating temperature |
-40~ 85oC, or specify |
||
|
Supply consumption |
35 mA max. |
||
|
Output level |
Output high |
90%Vdd min. |
|
|
Output low |
10%Vdd max. |
||
|
Duty cycle |
45~55% |
||
|
Rise / Fall time |
3ns max. |
||
|
Phase noise |
@10Hz |
-87dBc/Hz max. |
|
|
@1KHz |
-141dBc/Hz max. |
||
|
@100KHz |
-155dBc/Hz max. |
||
