1. SMD 7050 Temperature Compensated Crystal Oscillator TCXO, SMD Small Package, 7.0 × five × 2.0mm
2. VC-TCXO optional
3. Ultra high precision ± 0.05ppm~± 2.0ppm
4. Clipped sine wave output, frequency 32.768kHz~60MHz
5. Optional working voltage of 2.5V~5.0V
6. Ultra low phase noise and high precision, mainly used in product industries with special precision requirements such as testing instruments, wireless communication, military communication, aerospace and navigation, industrial control, etc
|
Item / Type |
NVT57 (SMD 7050溫補晶振TCXO/VCTCXO) | ||
|

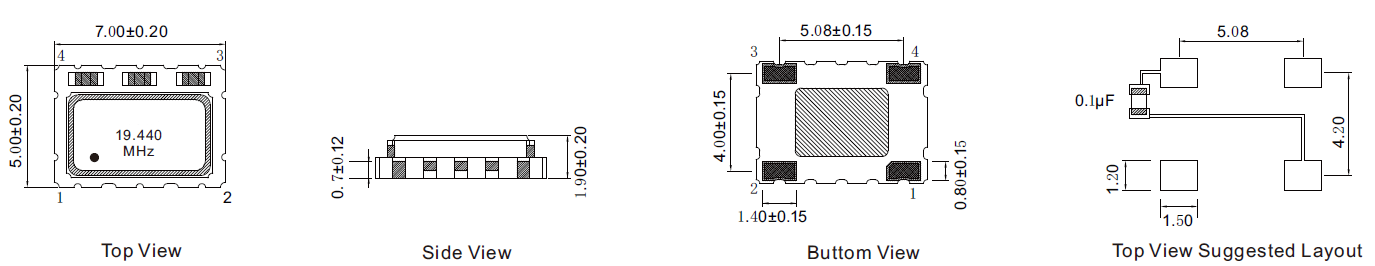

Dimensions |
7.0×5.0×2.00 mm |
||
|
Output level |
0.8Vp-p min. (Clipped Sinewave) |
||
|
Output load |
10KΩ // 10pF |
||
|
Output frequency range |
32.768kHz~60MHz |
||
|
Supply voltage |
2.5V ~ 5.0V |
||
|
Frequency stability |
Tolerance |
±2.0ppm max. |
|
|
Temperature |
±0.05ppm ~ ±2.0ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~ 85oC, or specify |
||
|
Supply consumption |
4.0 mA max. |
||
|
VC-TCXO |
Frequency control range |
±8ppm to ±16ppm |
|
|
Control voltage range |
0.5~4.5V@5V, [email protected], [email protected], [email protected] |
||
|
Input impedance |
100 kΩ |
||
|
Symmetry |
45% to 55% |
||
|
Start-up time |
2.0ms max. |
||
|
Storage temperature |
-40~ 85oC |
||
|
Phase noise @ Offset 1kHz |
-145dBc/Hz |
||
