1. Ultra small size SMD 7050 differential output voltage controlled crystal oscillator VCXO, size 7.0 × five × 1.45mm
2. Voltage controlled crystal oscillator (VCXO)
3. HCSL output, frequency 15MHz~700MHz
4. Low operating voltage: 1.8V~3.3V
5. Compliant with RoHS
6. Low phase jitter: 300fS RMS for 12KHz-20MHz
7. Supports three state function
8. Application scope: High speed Ethernet, jitter attenuator, HDTV, ATM, cable modem, VoIP, servers, storage systems, NAS, SAS, SATA, etc
|
Item / Type |
NVCHC57 (SMD 7050 VCXO Voltage Controlled Crystal HCSL Output) |
|

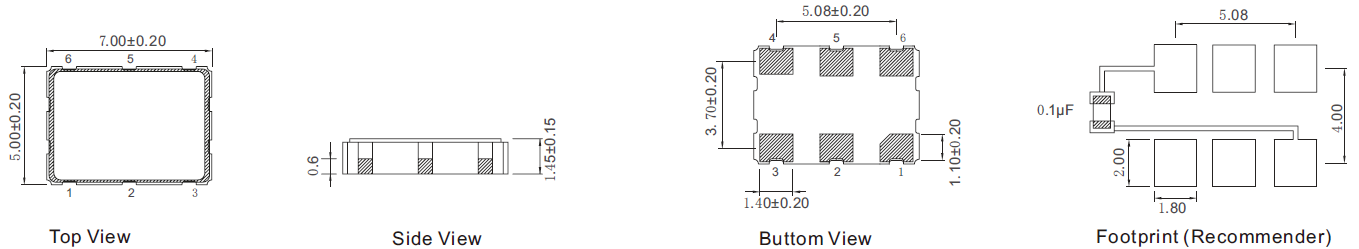

Dimensions |
7.0×5.0×1.45 mm |
|
Output |
HCSL |
|
Output load |
50Ω to GND |
|
Output frequency range |
15MHz~700MHz |
|
Supply voltage |
1.8V~3.3V |
|
Frequency tolerance |
±25ppm, ±50ppm |
|
Operating temperature |
-20~ 70oC, -40~ 85oC |
|
Supply current |
115mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
0.66V~1.15V min. / 0V~0.15V max. |
|
Rise time /Fall time |
0.4ns max. |
|
Start-up time |
8ms max. |
|
RMS phase jitter (12kHz~20MHz) |
330fS max. |
|
Phase noise (@1kHz) |
-87dBc/[email protected] |
|
Storage temperature |
-55~ 125oC |
|
Absolute pulling range (APR) |
±50ppm~±250ppm, or specify |
|
Control voltage range |
[email protected], [email protected], [email protected] |
|
Linearity |
±10% max. |
|
Input impedance |
5MΩ min. |
|
Modulation bandwidth (BW) |
20kHz max. |
