1. 14.0 × nine point one × 3.6 mm small-sized packaging
2. Voltage controlled crystal oscillator (VCXO)
3. CMOS waveform, frequency range from 50MHz to 125MHz
4. Working voltage of 5V/3.3V
5. Compliant with RoHS
6. Low phase noise, low sensitivity, and low power consumption
7. High frequency and high-performance VCXO
8. Mainly used for testing and measurement, telecommunications systems, instruments, satellite communication, base stations, etc
|
Item / Type |
NVCCM1490 (SMD VCXO) |
|

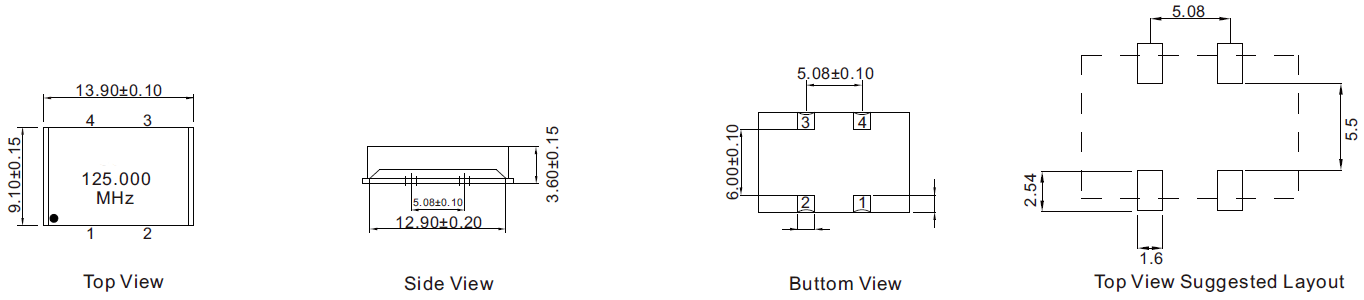

Dimensions |
14.0×9.10×3.60 mm |
|
Waveform |
CMOS |
|
Output load |
15pF, or specify |
|
Output frequency range |
50MHz~125MHz |
|
Supply voltage |
3.3V / 5.0V |
|
Frequency tolerance |
±25ppm, ±50ppm, ±100ppm |
|
Operating temperature |
-20~ 70oC, -40~ 85oC |
|
Supply current |
30mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
90% Vcc min. / 10% Vcc max. |
|
Rise time /Fall time |
3ns max. |
|
Start-up time |
10ms max. |
|
RMS phase jitter (12kHz~20MHz) |
1pS max. |
|
Phase noise (@1kHz) |
-140dBc/Hz |
|
Storage temperature |
-55~ 125oC |
|
Absolute pulling range (APR) |
±25ppm min., or specify |
|
Control voltage range |
[email protected], [email protected] |
|
Linearity |
10% max. |
|
Input impedance |
1MΩ min. |
|
Modulation bandwidth (BW) |
1 kHz min. |
